Small CCD mini bracket reversing camera

Small CCD mini bracket reversing camera
 Small CCD mini bracket reversing cameraSmall CCD mini bracket reversing camera
Our Price:  £66.00(Inc. 20% VAT)(£55.00 Exc. VAT)

Model:  CAM085ENTSC
Bar Code:  5060342254627
Vehicle  Car, van
Voltage  12 volt
Connector type  RCA (phono)
TVL  600 TVL
Type of sensor  CCD
Sensor manufacturer  Sony
Sensor size  1/3" sensor
Camera angle  150 degrees
Video Format  PAL

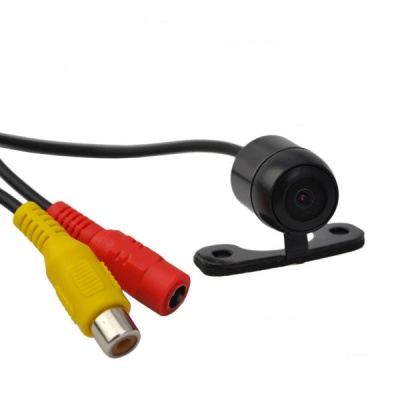

This camera is the latest on the market. One issue with CCD cameras is that they need a lot of volume to take the electronics. This means traditionally they were relatively large. New developments mean this is no longer true and this camera is one of the first using this technology. It is designed to mount in the number plate area with its mounting bracket mounted above it. Our new stock uses a 1/3" 600 TVL Sony CCD sensor.

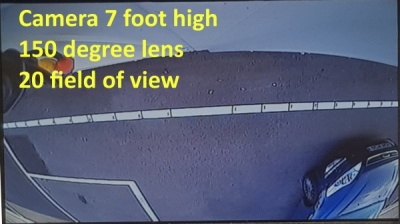

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation.

  • Image Sensor: 1/3 SONY HD CCD
  • Pixels: PAL:752*582,NTSC:752*494
  • Horizontal Resolution: 600 TVL
  • Lens: 1.7mm len
  • View Angle: 170 Degree
  • Video Output:1.0vp-p,75Ohm
  • Gamma Consumption:0.45
  • AGC: Auto
  • S/N Ratio: Better than 48dB
  • White Balance:Auto
  • Electronic Shutter: 1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
  • BLC: Auto
  • Current Consumption:70mA
  • Power Supply:DC12V
  • Operating Temperature: -20~+70 RH95% Max
  • Storage Temperature: -40~ 80 RH95% Max
