7 inch stand on dash monitor and two small CCD bracket reversing cameras

£252.00
(Inc. 20% VAT)
(£210.00 Exc. VAT)
+
Weight
2.40 kg
Information

This system is ideal for vehicles where a large bracket camera is not suitable. It gives excellent performance with the MON705 as the Sony sensor works well with the digital LCD panel in the monitor. With the camera available in white or black it will fit a wide range of vehicles. It can be used as an always on camera or to come on automatically with the reversing light. There is the provision for up to three cameras and an option for a stand style bracket for the monitor. This system comes with two reversing cameras.

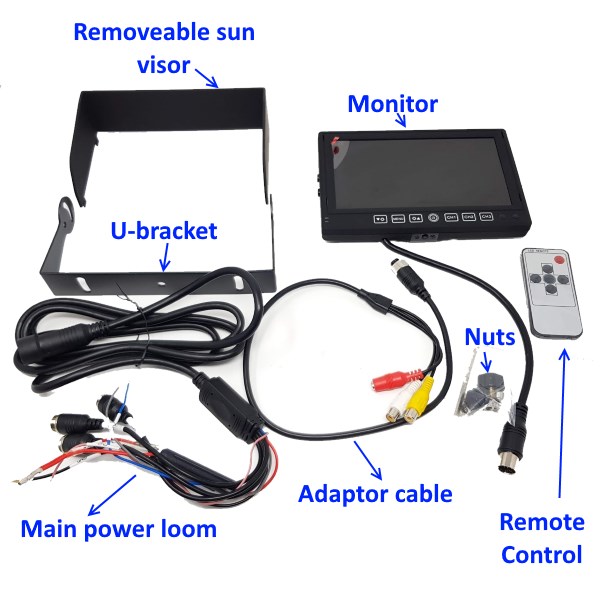

Specification of monitor
  • Resolution : 800 x R.G.B x 480
  • Aspect Ratio : 16:9 image
  • 3 way video input , 2 way audio input, with AV-IN
  • Power Supply : DC 9V-32V
  • System : PAL / NTSC Auto-Switching
  • OSD Menu , Remote Control
  • Built-in loudspeaker
  • Varying languages display
  • With stand & U shape bracket
  • Light sensor automatic adjustment

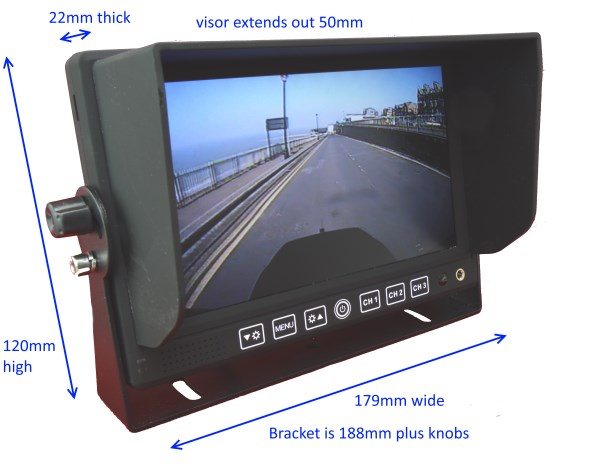

  • Size of main body 180mm (W) x 121mm (H) x 23mm (deep)
  • Digital colour panel with long life LED backlight
Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Our options

On all of our camera systems we have a wide variety of cable and wireless options. The information below shows you whet each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are in metres so multiply by 3 to change into feet. Having longer you need will not affect the picture and any extra cable should be coiled loosely where is cannot get damaged.

15m 8mm or 12.5 8mm

These are our 12.5m or 15m cables with an 8mm link. This is useful if you need to thread a cable front to back through a monitorhome and want to keep the size of the hole needed small.

15m extension cable with 8mm link

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

CAB011S

This is our medium duty trailer link suitable for caravans and farm trailers.

Medium duty trailer link

CAB011

This is our heavy duty trailer link as used on heavy goods vehicles.

Heavy duty trailer link

We now supply these as our CAB011 1m with a CAB049 and CAB052. This means if a socket getes damaged it is simple to replace without having to rewire the tow vehicle or trailer. If you wish different lengths of cable then please contact us.

60m wireless bridge

This is a version of our wireless bridge that will create an interference free digital wireless system. It is suitable to use when you only need to connect 1 camera wirelessly. It is an improved specification on our previous digital wireless bridge. It is waterproof, but we feel it is always best to protect it from the main force of the rain.

100m digital bridge

This is a version of our interference free waterproof digital bridge to create an interference free wireless system. It can be used if you want to add more than one wireless camera to a system. Again it is waterproof, but it is always best to protect from the main force of driving rain.

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap

Easy wire fuse tap

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 1m long and terminates in a 2.1/5.5 power connector.





Customer Reviews (0)

Be the first to Write a Review for this item!

Model
HD7361dual
Bar Code
5060342251121
Vehicle
Van, HGV, Tractor
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
Special features
Auto dims at night
Also Bought

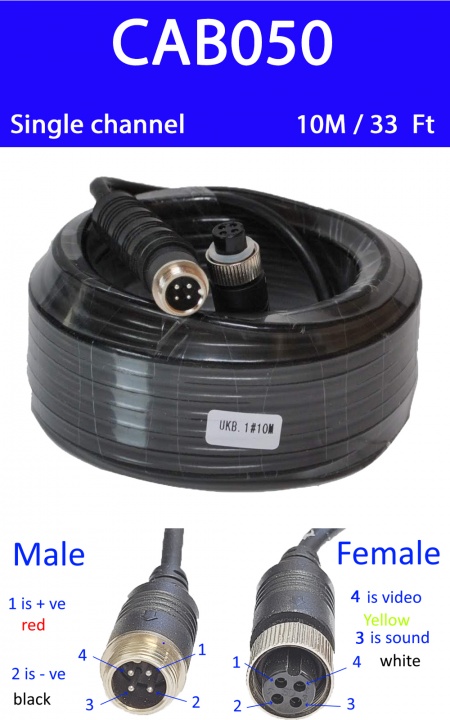

10m 4 pin reversing camera extension cable
10m 4 pin reversing camera extension cable
£13.00
+

CAB050

Medium duty trailer link for 2 reversing cameras
Medium duty trailer link for 2 reversing cameras
£60.00
+

CAB730S-2way

Mini bracket CCD reversing camera
£70.00
+
CAM361

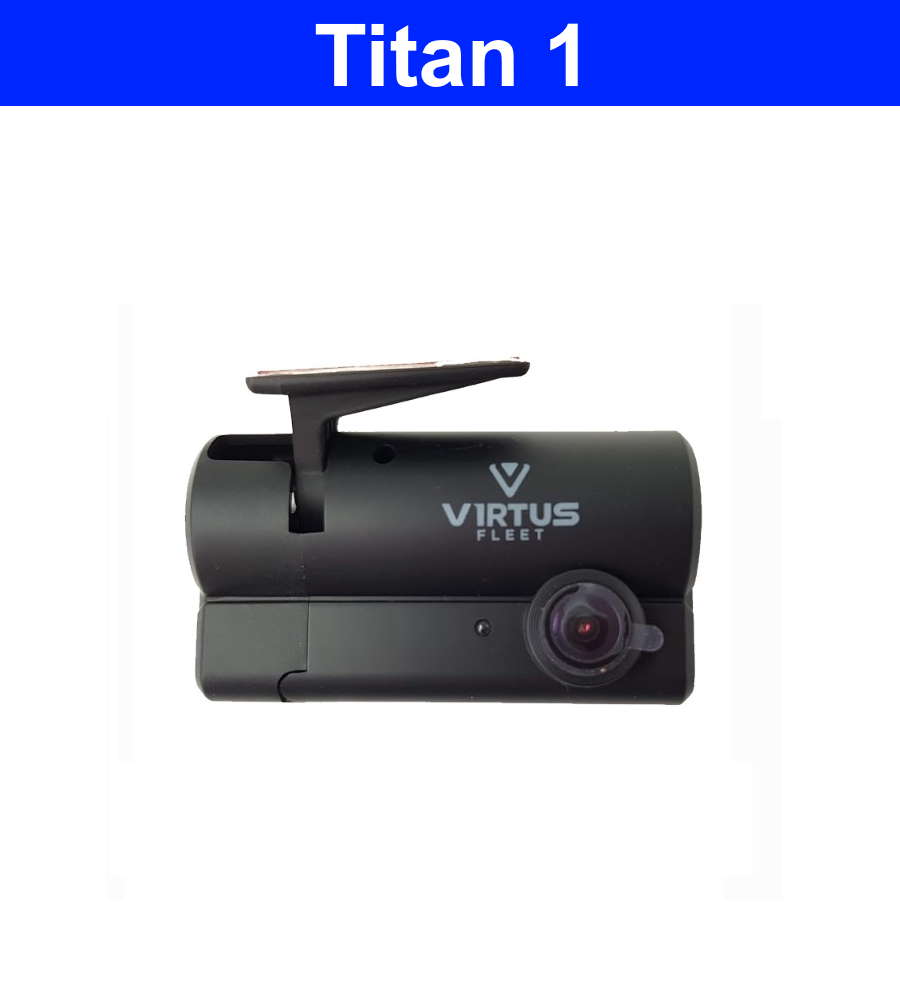

Titan 1 dash camera
