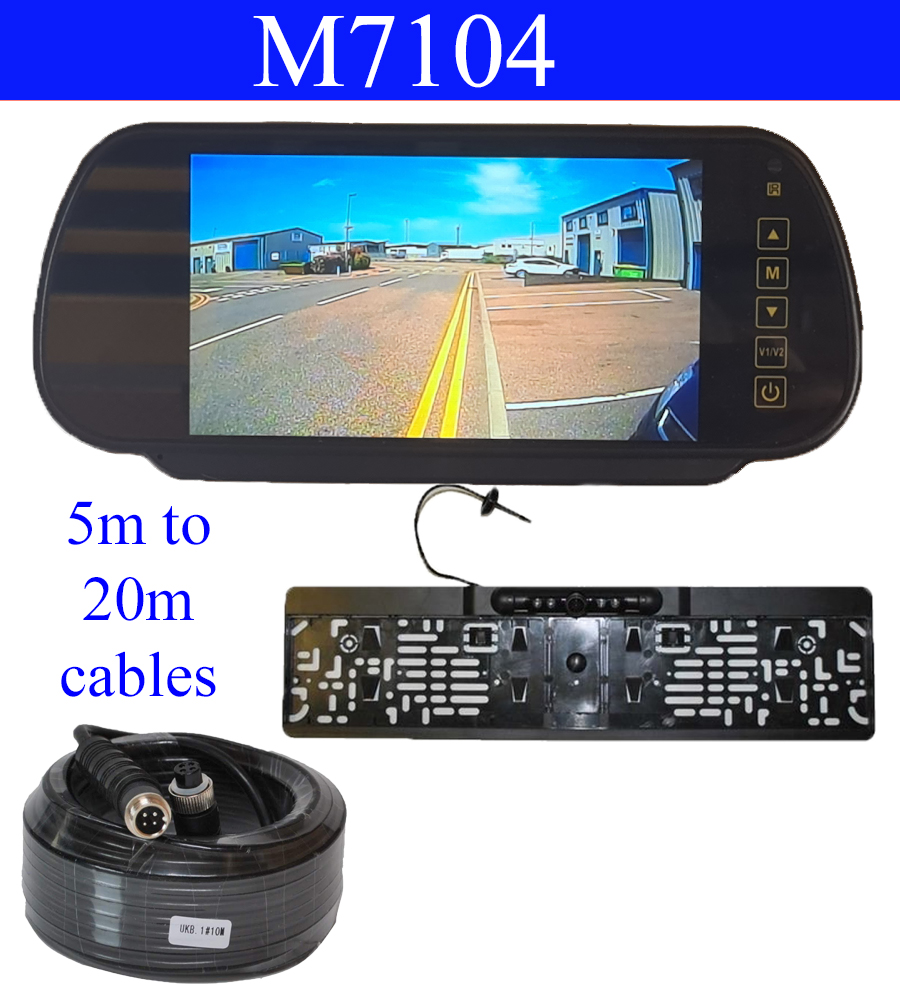

Mirror monitor and number plate frame reversing camera
Mirror monitor and number plate frame reversing camera
Mirror monitor and number plate frame reversing camera

Mirror monitor and number plate frame reversing camera

£191.00
(Inc. 20% VAT)
(£159.17 Exc. VAT)
In stock
+
Weight
2.10 kg
Introduction to product

The number plate frame camera is ideal on vehicle that have a flat area on which to install it. It has a wide 150 degree viewing angle and a special aspheric lens to reduce the fish eye effect. The 4 pin aviation connectors used are fully waterproof so ideal for running the cable along the chasis on vehicles like pick-ups. The mirror monitor has ajustable guidelines that can be calibrated. This is a very useful feature if you are reversing up to things. It will give a good colour image in the day and a black and white one at night.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • TV system :- PAL
  • Effective pixels :- 960 (H) x 480 (V)
  • Resolution :- 600 TVL
  • Minimum illumination :- 0.0 LUX (infrared LEDs on)
  • Video output :- 1.9Vp-p, 75 Ohms
  • Gamma consumpton:- 0.45
  • AGC:- On
  • Signal to noise ratio :- better than 43.6 dB
  • Electronic shutter :- 1/50 - 10000 auto
  • Baclight compensation :- Auto
  • Power supply :- 12V / 160mA
  • Lens angle :- 150 degrees
  • Operating temperature ;_ -30 degrees C to 70 degrees C
  • Connector :- 4 pin aviation
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M7104
Bar Code
5060342251862
Vehicle
Car, van
Voltage
12/24 volt
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
Hi-Res CMOS
Camera angle
150 degrees
