M7103 B AHD bracket mount mirror monitor and AHD number plate camera

£226.00
(Inc. 20% VAT)
(£188.33 Exc. VAT)
No stock
+
Introduction to product

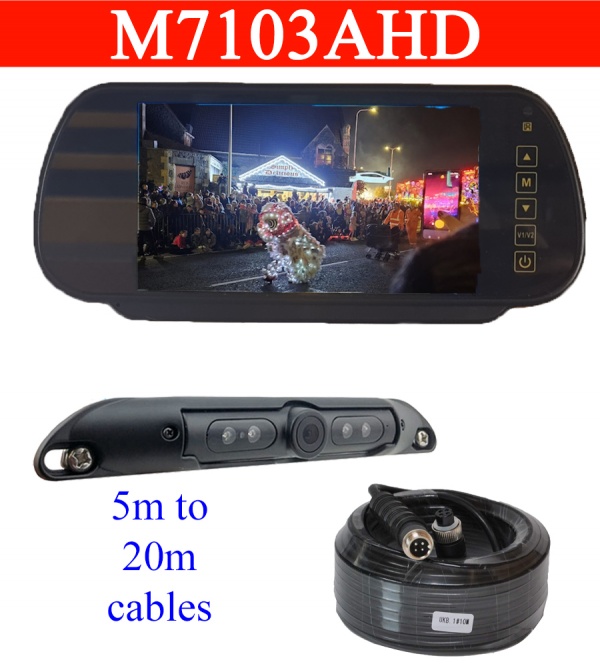

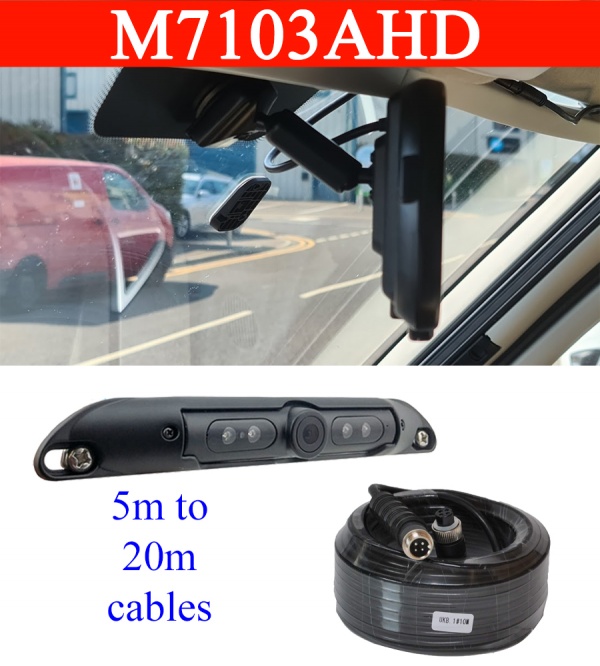

M7103 B AHD bracket mount mirror monitor and AHD number plate camera. This matches our AHD mirror monitor that takes a bracket to fit an existing interior mirror mounting plate to the CAM103 AHD number plate reversing camera. We go to the best factory in China for our number plate cameras as experience has taught us the cheaper ones frequently fail. They are one of our most reliable reversing cameras and the AHD version brings an improvement in image quality both during the day and at night. The special aspheric lens used in the camera reduces the fish eye affect you get with wide angled cameras. The high power IR LED lights help illuminate the area behind the vehicle at night.

Specification of monitor
  • Screen Size : 7 inches diagonally measured
  • Aspect Ratio : 16:9
  • Resolution : 1024 (W) x RGB x 600 (H)
  • TV System : Auto
  • Brightness : 300cd / m2
  • Contrast : 400 : 1
  • Active Area : 154.08(w) x 85.92(h) mm
  • Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
  • Video Format : AHD / CVBS
  • Mirror Flip : Non-mirror, mirror, flip, mirror flip
  • Video Channels : Two channel video input
  • Reverse Function : Single trigger (ruler setting function)
  • Power Supply : 12/24V DC, <6W
  • Operating Temperature : -20°C to +65°C
  • Storage Temperature : -25°C to +70°C
Specification of camera
  • Image sensor: Galaxy Core 2053
  • Image Device: 1/2.9” CMOS
  • Frame Rate: 25fps
  • Effective Pixels: 1920 (H) x 1080 (V)
  • Pixel pitch 2.8 μm x 2.8 μm
  • Scanning System: Progressive Scanning
  • Sync. System: Internal
  • Resolution: 1080P
  • Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
  • Microphone: Yes
  • Video Output: 1.0 Vp-p, 75 Ohm
  • Gamma Consumption: 0.45
  • AGC: Auto
  • Dynamic Range: 81dB
  • White Balance: Auto
  • Electronic Shutter: 1/30(1/25)~1/50,000 Seconds
  • BLC: Auto
  • Current Consumption: Max. 130mA
  • Power Supply: DC 12 V
  • Connection: 4 PIN
  • Operating Temperature: -20°C~70°C, RH 95% MAX. Lens: f=2.1mm / f =1.98 mm
  • Lens Angle: 150°
Model
M7103BAHD
