CCD bullet camera with 4 pin connectors
CCD bullet camera with 4 pin connectors

CCD bullet camera with 4 pin connectors

(Inc. 20% VAT)
(£62.50 Exc. VAT)
20 in stock
300 g
Introduction to product

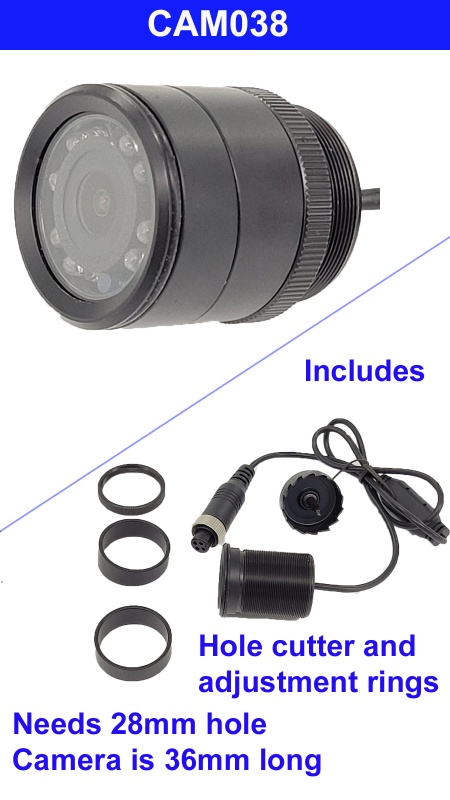

This CCD bullet camera uses the latest 600 TVL Sony CCD sensor which gives a clear colour image in the day. I has 9 IR LEDs which gives a good black and white night vision especially in areas where there is good street lighting. It comes complete with a 28mm hole drill for plastic bumpers. It is fully waterproof and uses a waterproof 4 pin connector. We recommend the plastic moulding on the cable is kept internally. We also recommend the camera is mounted in such a way as it is tilted down to reduce the amount of sky in the image. We find the more sky in to top half the picture the darker the lower half becomes due to the auto balance of the camera.

Specification of camera
  • Image sensor:- 1/3" 600 TVL Sony CCD
  • Video system: PAL (Unless stated as NTSC in information tab)
  • Effective pixels:-  PAL 752 x 582  NTSC 768 x 494 (H x V)
  • Horizontal resolution: 600 TVL
  • Signal to noise ratio:- >48dB
  • Electronic shutter: 1/50 - 1/10000 secs
  • Video output:- 1.0V+/-0.5vp-p 75 Ohms
  • Viewing angle:- 120 degrees (unless stated differently in information tab)
  • Working voltage:- DC9V - 12V +/- 0.5V
  • Consumption:- 80 mA+/- 10%
  • Waterproof rating:- IP68


Bar Code
Car, van
12 volt
Connector type
4 pin aviation
600 TVL
Special features
9 IR LEDs for night vision
Type of sensor
Sensor manufacturer
Sensor size
1/3" sensor
Camera angle
120 degrees
