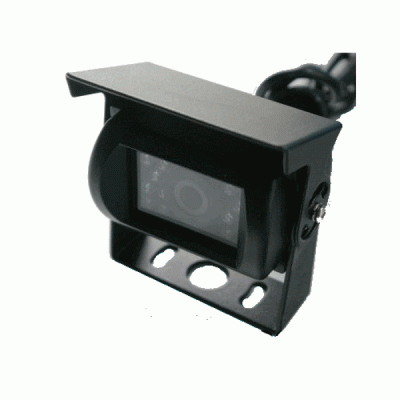

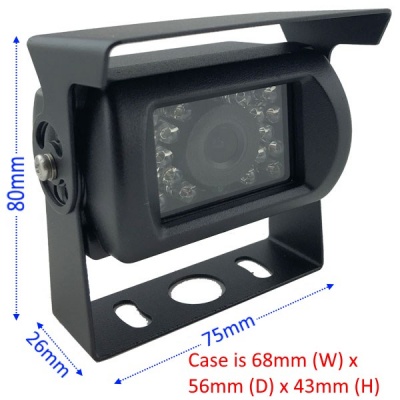

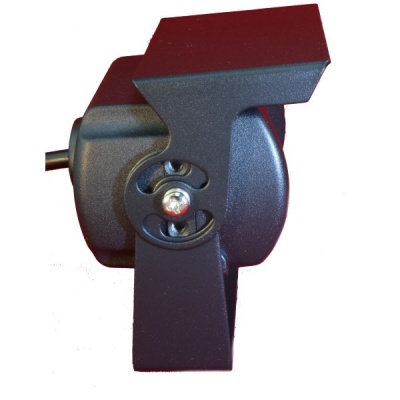

NTSC CCD bracket camera with 4 pin connectors

(Inc. 20% VAT)
(£56.67 Exc. VAT)
2 in stock
300 g
Introduction to product

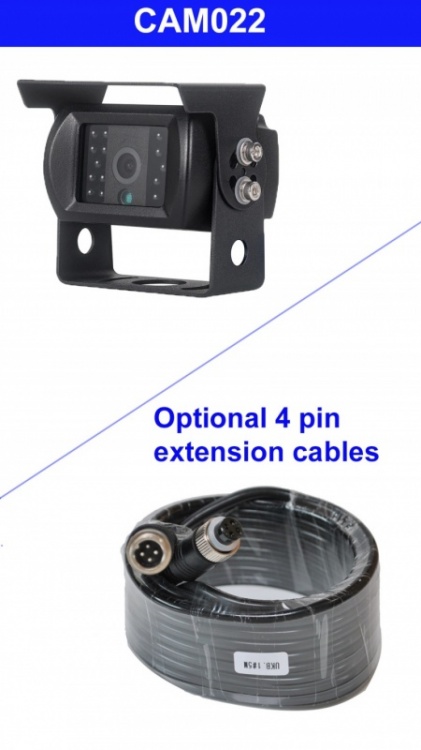

This CCD bracket camera is identical to our CAM022 apart from the fact it uses NTSC format. Most modern monitors will accept PAL or NTSC automatically adjusting between them. Some manufacturers like Alpine still have most of their products in NTSC format only. As they supply many German car manufacturers then if you are using the screen built into the vehicle you probably need a NTSC format camera.

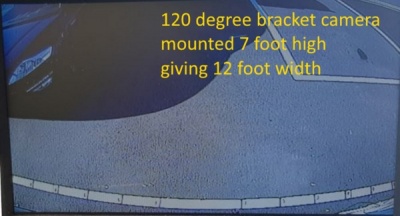

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation.

Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Bar Code
van, farm machinery
12 volt
Connector type
4 pin aviation
700 TVL
Special features
18 IR LEDs for night vision
Type of sensor
Sensor manufacturer
Sensor size
1/3" sensor
Camera angle
120 degrees
Video Format
