Small CMOS Reversing Camera

Small CMOS Reversing Camera
Our Price:  £48.00(Inc. 20% VAT)(£40.00 Exc. VAT)

Model:  CAM502
Voltage  12 volt
Type of sensor  700TVL CMOS
Sensor size  1/3" sensor
Camera angle  150 degrees
Video Format  NTSC

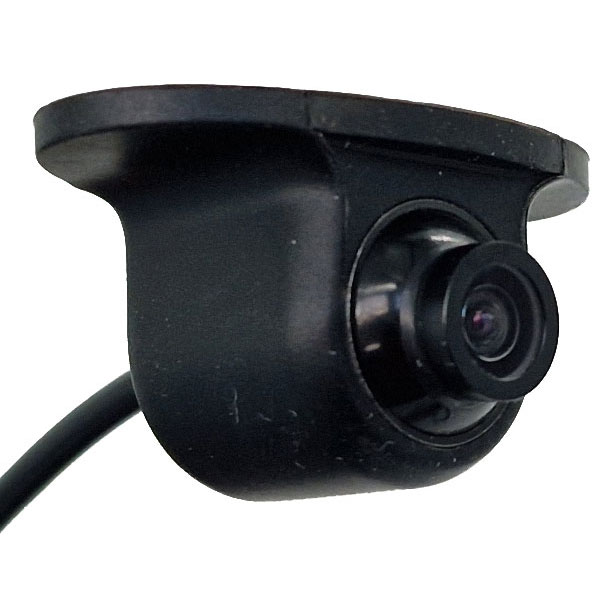

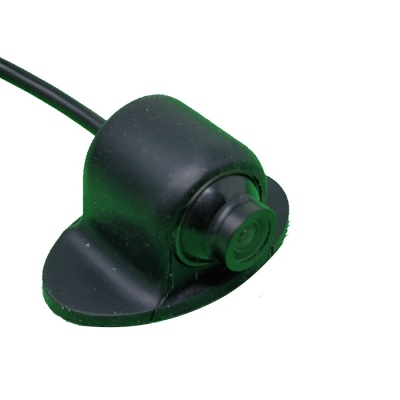

This small CMOS reversing camera is ideal for mounting in the number plate area. It is one of the new generation of high resolution CMOS sensors that perform as well as cameras that use a CCD sensor. It gives a 700 TVL image and uses a composite glass lens. You can often find this design that use the cheaper plastic lenses, but those tend to mist over time as UV light affects the plastic. The sensor used is the PC4089 1/3" CMOS sensor, which is found in many of our better quality CMOS reversing cameras. We had these cameras made with the option of grid lines or a normal camera view so it can be used as a forward facing camera.  An unusual feature of the camera is it is held in a rubber mounting. There is limited adjustment in all directions.

The camera is available in either RCA connectors or 4 pin aviation. You can select the connector using the drop down menu.

Be the first to Write a Review for this item!


  • Image device:- PC4089 CMOS sensor
  • Resolution: 700 TVL
  • Mirror image
  • Selectable grid lines
  • Selectable guidelines
  • NTSC format
  • IP rating: Ip68
  • Camera angle: 170 degrees diagonal
  • HD all glass composite lens
  • 10G vibration rating
