M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras
M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras
M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras
M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras
M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras

M705B AHDdual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras

£222.00
(Inc. 20% VAT)
(£185.00 Exc. VAT)
+
Weight
2.20 kg
Introduction to product

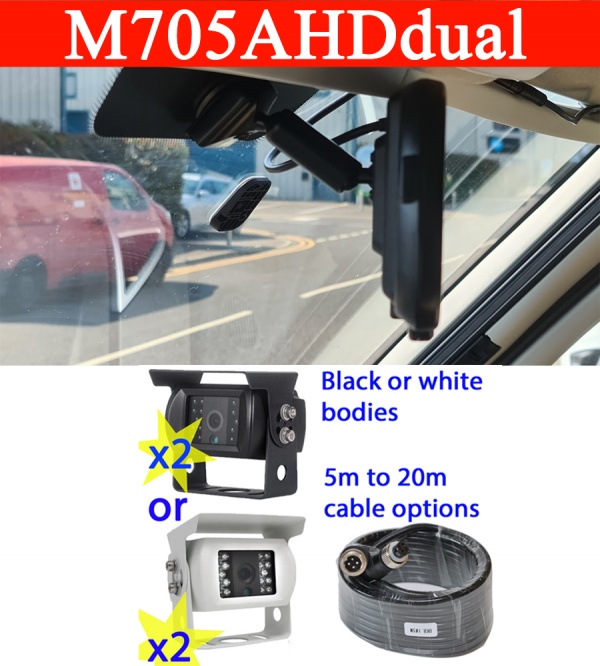

M705B AHD dual Mirror monitor with bracket plus 2 AHD bracket style reversing cameras. Our MON293B with this kit has a bracket to fit the existing mounting plate on the windscreen If you do not have one there we do have a universal plate plus glue if required. Matched with 2 cameras this is ideal for situations like horseboxes where you need a reversing camera plus a camera to view the luggage area. It is also popular with people who tow a trailer and want more control over the adjustability of the camera. The cameras give a nice sharp colour day view and in lower light conditions like inside a horse box a very clear view. At night the IR LEDs will illuminate an area close to the camera. If there is fairly good street lighting then they will give a good black and white image of the area behind the vehicle.

We can supply a narrow angled version of one of the cameras if required. Narrow angled cameras are good when the camera is being used as a continuous rear view camera. Being narrow angled they give a view similar to what you would normally see in a rear view mirror.

Specification of monitor
Specification



Resolution:                                1024 x 600 Pixels

TVsystem:                                   Auto

Brightness:                                 300 cd/m2

Contrast:                                    400:1

Active area:                                154.08 (W) x 85.92 (H) mm

Viewing Angle:                           U/D50/70, R/L 70/70

Image settings:                          Brightness, Colour, Contrast

Video Formar:                            AHD/CVBS Hybrid

Mirror Flip:                                 Non-mirror. mirror, flip, mirror flip

Video Channels:                        Two channel input

Reversing delay option:            0 to 15s

Power supply:                            12/24V DC automatic selection

Specification of Camera

I

  • Image sensor and chips: FH8550M+C2398
  • Resolution: 1920*1080P (2 million pixels)
  • Night Vision: 850 / IR-CUT night vision
  • Wide Dynamic: Support (mobile frame rate 100DB)
  • SNR: >52DB (AGC OFF)
  • System: PAL
  • Image: Mirror image
  • Waterproof Level: IP68
  • Shockproof Level: 4G
  • Connectors: 4 Pin aviation
  • Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
  • Power Consumption: Approx 1.8W per camera
  • Video Output: 1080P
  • Working Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to 85°C
  • Stainless Steel Bracket (painted)
Model
M705BAHDdualB
