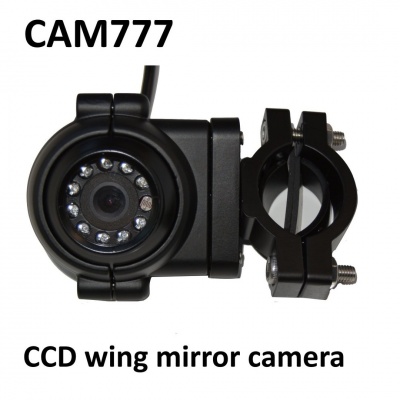

CCD wing mirror camera for HGV
CCD wing mirror camera for HGV
CCD wing mirror camera for HGV

CCD wing mirror camera for HGV

£75.00
(Inc. 20% VAT)
(£62.50 Exc. VAT)
In stock
+
Weight
400 g
Introduction to product

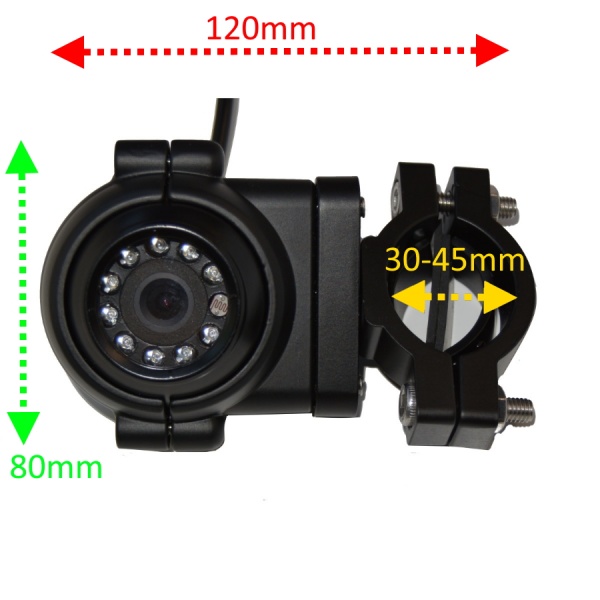

This camera is designed to clamp onto the tubular frame holding the wing mirror in place of some HGV vehicles. It uses the same 4 pin connector as on all our 12/24v vehicles. The camera operates at 12V which is normally supplied by the monitor. With infrared LEDs, 120 degree lens and a top quality CCD sensor it gives a good image in both the day and night.

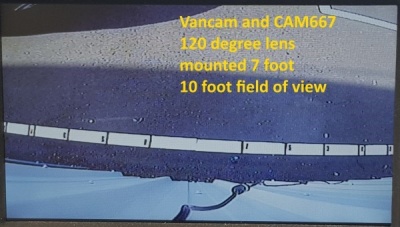

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation. In this case the 120 degree angle quoted is an exageration.

Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Model
CAM777
Bar Code
5060342256423
Vehicle
Van, HGV, Tractor
Voltage
12 volt
Connector type
4 pin aviation
TVL
700 TVL
Special features
9 IR LEDs for night vision
Type of sensor
CCD
Sensor manufacturer
Sony
Sensor size
1/3" sensor
Camera angle
120 degrees
