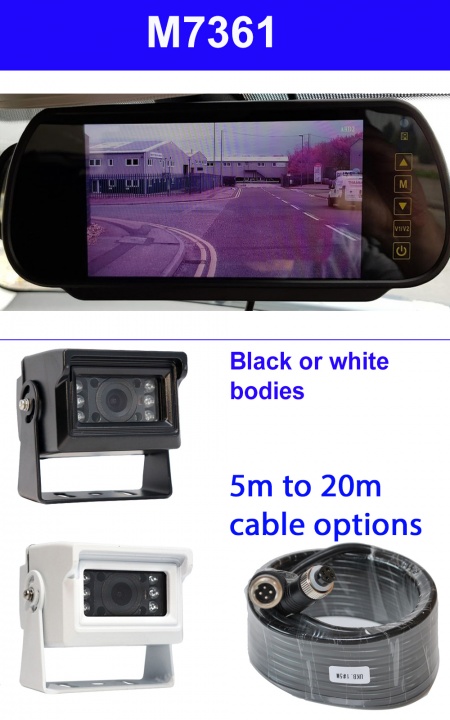

7 inch mirror monitor reversing system with CCD reversing camera
7 inch mirror monitor reversing system with CCD reversing camera

7 inch mirror monitor reversing system with CCD reversing camera

£171.00
(Inc. 20% VAT)
(£142.50 Exc. VAT)
+
Weight
2 kg
Introduction to product

This is a heavy duty colour reversing camera system ideal for all vehicles and is designed for constant use. The high resolution digital screen gives a crisp clear image and our CCD reversing cameras produce good day and night images. With the monitor being in the rear view mirror position it is often used as an always on rear view mirror. It can be wired in to come on automatically when reverse is selected or you can just press the on/off button on the monitor. You can add a second camera if required. When the monitor is not on it will act like a rearview mirror. The reflection you get is similar to if the dip lever on the mirror has been activated. Our normal stock of monitors have the facility to show grid lines when in reverse and these can be adjusted and calibrated with distances. The LCD panel in the monitor is top quality so it gives a nice bright high resolution picture.

We offer an option to have a lighter plug. This is useful to test the system using the lighter plug socket in your vehicle. Another option is a fuse tap cable. This allows you to hard wire the system using an existing fuse on your fuse board.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.





Model
M705B
Bar Code
5060342254023
Colour
Black or white bodies available
Vehicle
Van, HGV, Tractor
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
