Introduction to product

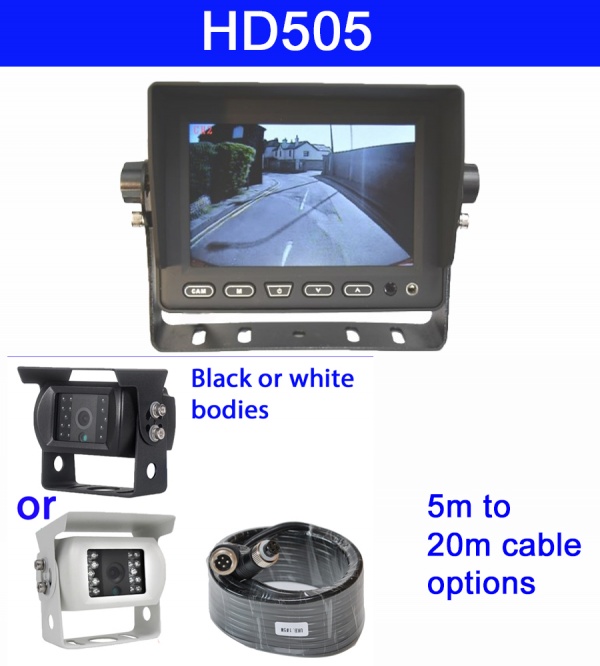

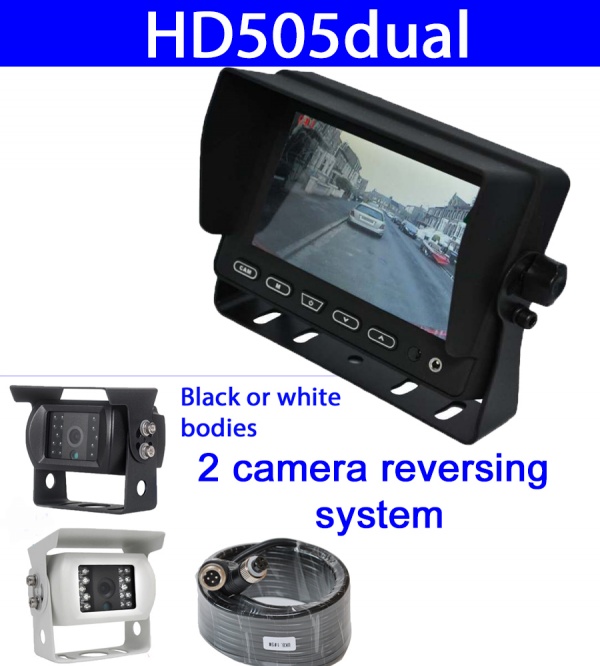

This is a heavy duty colour reversing camera system ideal for all vehicles and is designed for constant use. The high resolution 5 inch digital screen gives a crisp clear image and our CCD reversing cameras produce good day and night images. The heavy duty U bracket ensures the monitor is stable no matter how bumpy the road. With the capability of taking up to three cameras this is one of our top systems.

Specification of monitor
  • 3 video inputs, 2 audio inputs, AV in jack
  • Option PAL or NTSC
  • Resolution 800 x ( R G B ) x 480 pixels (note 2400 x 480 points using the Chinese definition of resolution)
  • Power supply 12v - 24v
  • Remote control with OSD menu
  • Built in speaker
  • Contrast, colour and brightness adjustable
  • 5" colour digital TFT display
  • U-shaped bracket with optional stand or suction mount
  • 4 pin connectors to the cameras
Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
HD505B
Bar Code
5060342255990
Vehicle
Van, HGV, Tractor
Voltage
12/24 volt
Screen size
5" diagonally
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
CCD
Sensor size
1/3" sensor
Camera angle
120 degrees
