7 inch heavy duty quad screen
7 inch heavy duty quad screen

7 inch heavy duty quad screen

(Inc. 20% VAT)
(£133.33 Exc. VAT)
In stock
1.60 kg

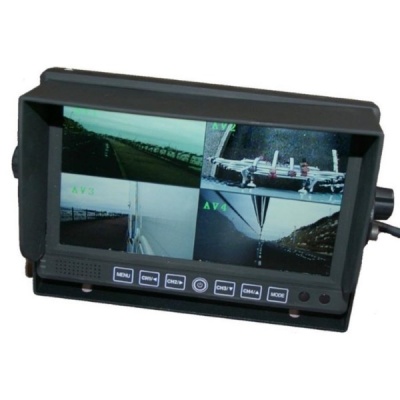

Introduction to product

This is a dual 12v or 24v monitor with a 7 inch colour TFT screen. It uses the latest digital high resolution LCD panel giving 800 x 480 pixels. Being a digital panel it offers greater picture clarity especially when used with CCD reversing cameras.  It can take up to 4 cameras and provides them with power via the 4 core cable. The monitor has reverse polarity protection and over-voltage protection which also protects the cameras attached.  It is very easy to make a system with this monitor as all you need is the camera, 4 pin cable and monitor. It simply plugs together and all runs off the monitor power supply. We can adapt these to run off a lighter plug on 12v vehicles if required. This is one of the models of monitor we carry a full range of spares for and can usually repair them if they fail out of the guarantee period.

Specification of monitor
  • 7" colour LCD panel
  • Screen ratio:- 16:9
  • Backlight luminance:- 250 cd/m2
  • Resolution:- 800 x R x G x B x 480 points
  • Compatible system:- NTSC/PAL automatically adjusting
  • OSD control:- Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
  • Viewing angle :- Hor. L(70) R(70) Ver. UP(50) DOWN(70)
  • Image display:- up/down and left/right - this operates the whole image including the menu
  • Power requirement:- 12v - 24V DC
  • Power consumption:- 5w
  • Size:- 180 x 121 x 23mm - see photographs for detail
  • Weight:- 612g
  • AVinputs:- 4 video and 1 audio

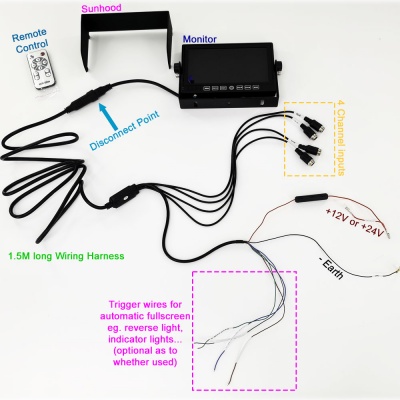

  • Accessories:- Remote control, power supply cable, user manual, U-bracket
  • Option extras:- CAB705 - 3m monitor lead extension cable, ACC705B - stand style monitor bracket
Bar Code
Van, HGV, Tractor
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
