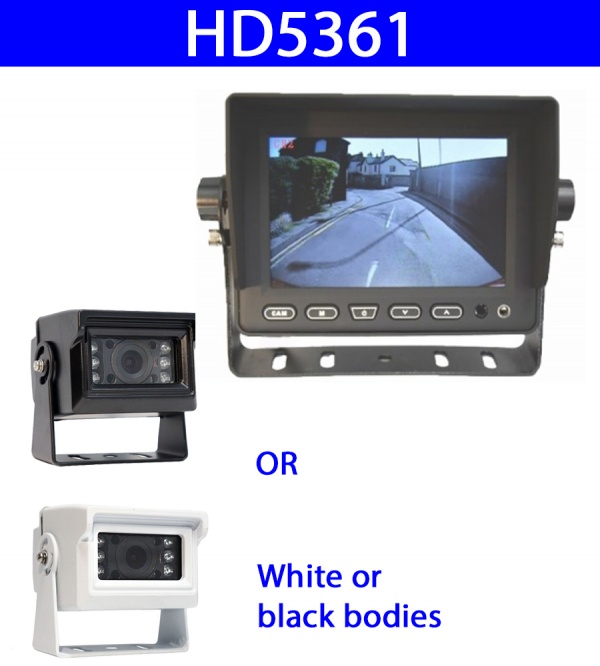

5 in stand on dash monitor and small CCD reversing camera

5 in stand on dash monitor and small CCD reversing camera
  Zoom
Our Price:  £151.00(Inc. 20% VAT)(£125.83 Exc. VAT)
+
Colour:
Cable length:
Lighter plug:
Monitor bracket:

Model:  HD5361W10
Bar Code:  5060342255884
Vehicle:  Car, van
Voltage:  12/24 volt

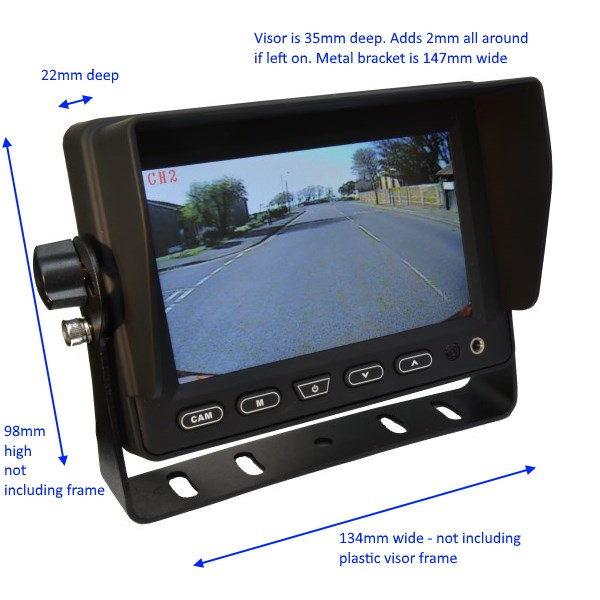

Screen size:  5" diagonally
Screen resolution:  800 x 480 pixels
Connector type:  4 pin aviation


This system is ideal for vehicles where a large bracket camera is unsuited. It gives excellent performance with the MON5001 as the Sony sensor works well with the digital LCD panel in the monitor. With the camera available in white or black it will fit a wide range of vehicle. It can be used as an always on camera or to come on automatically with the reversing light. There is the provision for up to three cameras and a choice of stand for the monitor.

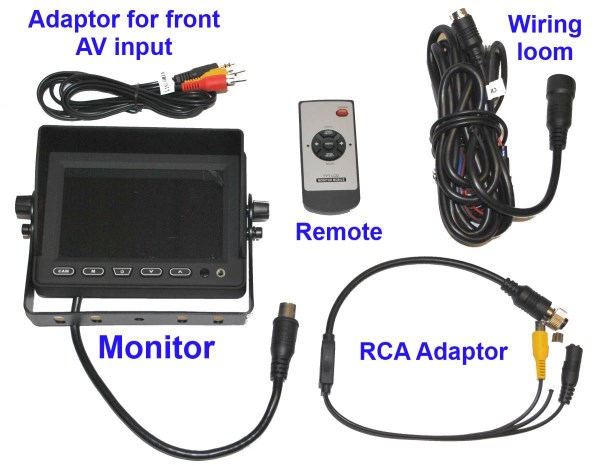

  • 3 video inputs, 2 audio inputs, AV in jack
  • Option PAL or NTSC
  • Resolution 800 x ( R G B ) x 480 pixels (note 2400 x 480 points using the Chinese definition of resolution)
  • Power supply 12v - 24v
  • Remote control with OSD menu
  • Built in speaker
  • Contrast, colour and brightness adjustable
  • 5" colour digital TFT display
  • U-shaped bracket with optional stand or suction mount
  • 4 pin connectors to the cameras
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68

On all of our camera systems we have a wide variety of cable and wireless options. The information below shows you whet each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are in metres so multiply by 3 to change into feet. Having longer you need will not affect the picture and any extra cable should be coiled loosely where is cannot get damaged.

15m 8mm or 12.5 8mm

These are our 12.5m or 15m cables with an 8mm link. This is useful if you need to thread a cable front to back through a monitorhome and want to keep the size of the hole needed small.

15m extension cable with 8mm link

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

CAB011S

This is our medium duty trailer link suitable for caravans and farm trailers.

Medium duty trailer link

CAB011

This is our heavy duty trailer link as used on heavy goods vehicles.

Heavy duty trailer link

60m wireless bridge

This is a version of our wireless bridge that will create an interference free digital wireless system. It is suitable to use when you only need to connect 1 camera wirelessly. It is an improved specification on our previous digital wireless bridge. It is waterproof, but we feel it is always best to protect it from the main force of the rain.

100m digital bridge

This is a version of our interference free waterproof digital bridge to create an interference free wireless system. It can be used if you want to add more than one wireless camera to a system. Again it is waterproof, but it is always best to protect from the main force of driving rain.

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
