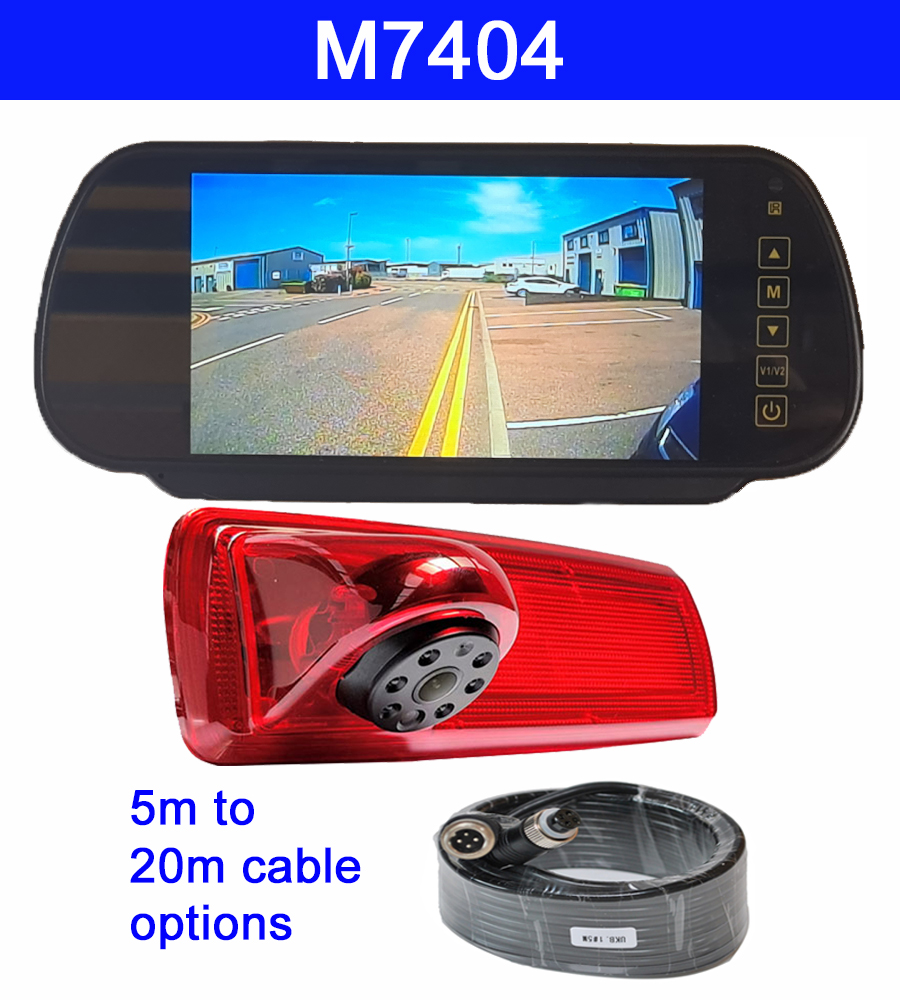

Vauxhall Vivaro brake light camera and mirror monitor

This matches our high quality 7 inch clip on mirror monitor with the brake light camera for a Vauxhall Vivaro. The great advantage of brake light cameras is you do not need to drill holes in the vehicle. The camera has IR LEDs to give a useable black and white image at night. During the day it will give a high resolution colour image. The mirror monitor powers the camera so you can turn it on and off any time the ignition is on. It also has a trigger wire you can attach to the reversing light positive to automatically bring up channel 2 when you go into reverse. It also can display adjustable grid lines which can be calibrated with distances.

• 7 "TFT LCD color LCD
• Display ratio: 16:9 / 4:3 image flip function
• Resolution: 800 × (RGB) × 480
• Two Video AV input - 4 pin connectors,
• Full function remote control operation, touch button operation
• Input Voltage: DC 12/24V automatic selection
• Power:9W
• Brightness: 300cd/m2
• Contrast: 500:1
• Color: black
• Long life LED backlight
• 3m power loom - longer so you can easily reach the dash in a van
• Video format: CVBS
• Viewing angle: U/D 70/70 R/L 50/70
• Adjustable grid lines which can be calibrated

Please not the MON293B has no grid lines

Specification of camera

• Sensor:                         1/3 PC4089 CMOS
• TV lines:                       700 TVL
• TV System:                  NTSC/PAL see listings for detail
• Lens:                            1.9mm
• Min Illumination:      0 Lux (LED ON)
• IR LEDs:                       8 pcs
• Night vision distance: 30 feet
• Viewing angle:           150 degrees
• Camera lens adjustable: 20 degrees (up and down)
• Power voltage:          12V
• Current consumption: 150 mA
• Operation Temp:        -20 to +70 degrees C
• Connector:                  4 pin aviation
• Certification:              FCC, CE, E Mark, RoHS
• Effective Pixels:          976 (H) x 592 (V)

On all of our camera systems we have a wide variety of cable and wireless options. The information below shows you whet each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are in metres so multiply by 3 to change into feet. Having longer you need will not affect the picture and any extra cable should be coiled loosely where is cannot get damaged.

15m 8mm or 12.5 8mm

These are our 12.5m or 15m cables with an 8mm link. This is useful if you need to thread a cable front to back through a monitorhome and want to keep the size of the hole needed small.

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

CAB011S

This is our medium duty trailer link suitable for caravans and farm trailers.

CAB011

This is our heavy duty trailer link as used on heavy goods vehicles.

We now supply these as our CAB011 1m with a CAB049 and CAB052. This means if a socket getes damaged it is simple to replace without having to rewire the tow vehicle or trailer. If you wish different lengths of cable then please contact us.

60m wireless bridge

This is a version of our wireless bridge that will create an interference free digital wireless system. It is suitable to use when you only need to connect 1 camera wirelessly. It is an improved specification on our previous digital wireless bridge. It is waterproof, but we feel it is always best to protect it from the main force of the rain.

100m digital bridge

This is a version of our interference free waterproof digital bridge to create an interference free wireless system. It can be used if you want to add more than one wireless camera to a system. Again it is waterproof, but it is always best to protect from the main force of driving rain.

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 1m long and terminates in a 2.1/5.5 power connector.
