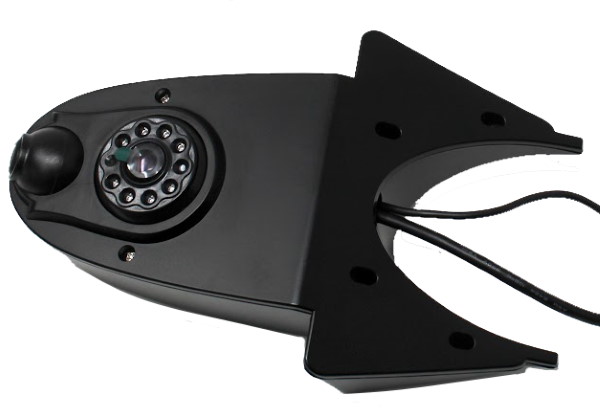

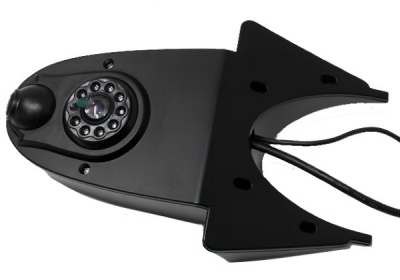

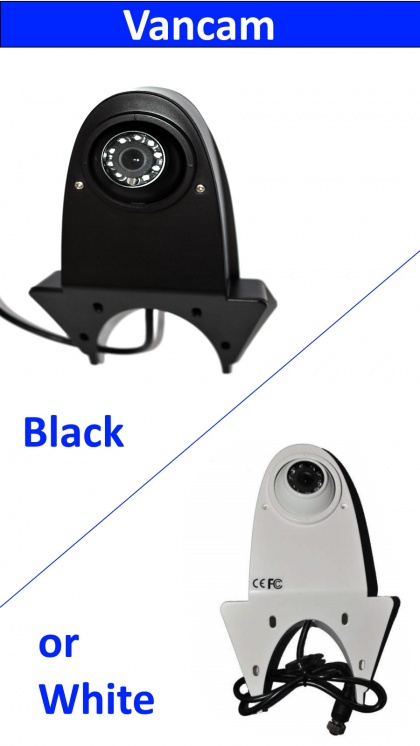

Twin lens roof mounted reversing camera for a van

Twin lens roof mounted reversing camera for a van
  Zoom
Our Price:  £150.00(Inc. 20% VAT)(£125.00 Exc. VAT)

Model:  VANCAMtwin
Vehicle:  Van
Voltage:  12 volt
Connector type:  4 pin aviation
Type of sensor:  700TVL CMOS
Sensor size:  1/3" sensor

Weight:  600 g

Availability:



No stock


This is the latest version of the VANCAM that has 2 camera lenses. The one lens is pointing down to give a good view of the rear of the van both during the day and at night. It has a wide angled lens fitted to cover the complete rear of the van and also see a short distance back down the road. The direction the camera points has a small 20 degree adjustment to get the optimal view. The second lens points back down the road to be used as an always on rear view camera. When the product was being developed we encouraged the manufacturer to adjust the design to give better adjustment on this camera. We also asked for the camera to have a narrow angled view so it give a better perception of distance. This lens does not have IR LEDs as they are not effective on cameras looking into the distance. It does use a modern CMOS sensor that is very sensitive to light so as long as there are street lights you should get good night vision. These cameras are ideal for vans that have a lip at the top of the doors that prevent mounting the camera above the doors. We do sell a stainless steel mounting plate if your van has a deep lip. The camera uses 4 pin aviation connectors so our Y-cables are suitable to use with it.

Be the first to Write a Review for this item!

Driving camera (upper camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 700 TVL
  • TV system: NTSC
  • Lens: 2.6mm
  • Min illumination: 0.1 LUX
  • Waterproof: IP68
  • View angle: V 65 degrees, H 80 degrees D 105 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation

Reversing camera (lower camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 700 TVL
  • TV system: NTSC
  • Lens: 1.9mm
  • Min illumination: 0.0 LUX (IR LED on)
  • IR LEDs: 8 pcs
  • Night vision: 10m
  • Waterproof: IP68
  • View angle: V 85 degrees, H 130 degrees D 160 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Guideline: Optional (some have a trigger wire to select)
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation
