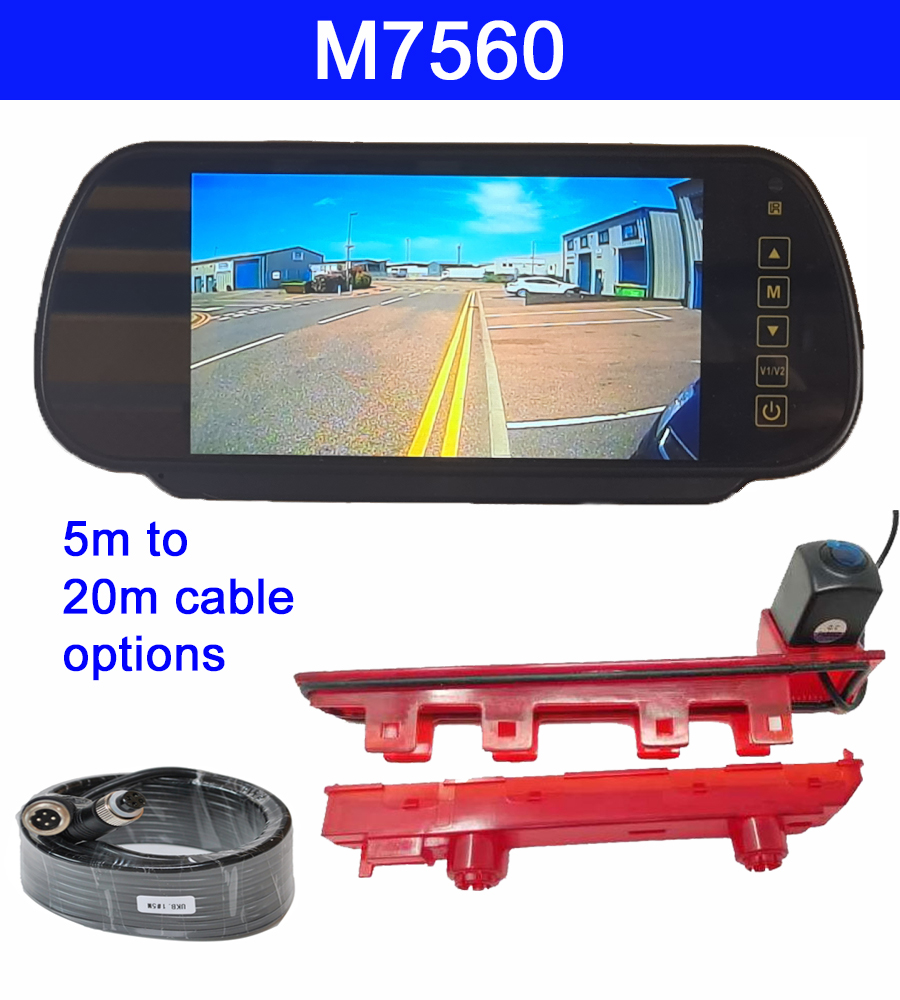

T5 VW Transporter brake light camera and mirror monitor
T5 VW Transporter brake light camera and mirror monitor
T5 VW Transporter brake light camera and mirror monitor

T5 VW Transporter brake light camera and mirror monitor

£190.00
(Inc. 20% VAT)
(£158.33 Exc. VAT)
In stock
+
Weight
1.90 kg
Introduction to product

This matches the T5 brake light camera for barn doors with our mirror monitor. The brake light cameras remove the need to drill holes in the vehicle. It gives a useable image at night using the vehicle lights and background illumination from street lighting. During the day it gives a good colour high resolution image. The clip over mirror monitor can be turned on and off as required while the ignition is on. It can also have a trigger wire connected to the reverse light to bring up channel 2 when you go into reverse. The monitor can display optional grid lines and these can be adjusted and calibrated with distances.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0.1 Lux
  • Viewing angle:           150 degrees
  • Camera lens adjustable: Depends on model - see listing.
  • Power voltage:          12V
  • Current consumption: 120 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          728 (H) x 488 (V)
  • Waterproof:                IP68
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Lighter plug

A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M7560
Bar Code
5060342251930
Vehicle
Van
Voltage
12/24 volt
Screen resolution
800 x 480 pixels
TVL
700 TVL
Type of sensor
700TVL CMOS
Camera angle
150 degrees
Compatible with
VW Transporter T5/T6 2010 to date
and
VW California 2010 to date
and
Citreon Space Tourer 2017 to date
and
ALL WITH BARN DOORS
