Renault Master Brake Light Camera and Mirror Monitor
Renault Master Brake Light Camera and Mirror Monitor
Renault Master Brake Light Camera and Mirror Monitor

Renault Master Brake Light Camera and Mirror Monitor

£190.00
(Inc. 20% VAT)
(£158.33 Exc. VAT)
In stock
+
Weight
1.90 kg
Introduction to product

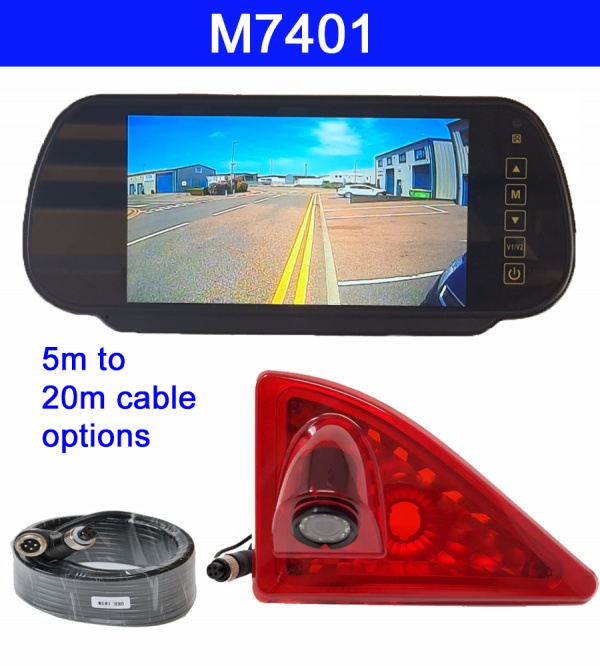

This matches our Renault Master brake light camera with the clip over the mirror monitor. Brake light cameras make fitting a lot easier as no holes need to be drilled in the vehicle. It will give a good high resolution colour day view and a useable black and white image at night. The clip on mirror monitor has the option to show guidelines. These can be moved and calibrated with distances making it a very useful feature. As the camera is powered from the monitor it can be turned on any time the ignition is on. It can also have a trigger wire attached to the positive of the reversing light to bring up channel 2 when you go into reverse.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • Image sensor:- 1/3" 600 TVL Sony CCD
  • Video system: PAL (Unless stated as NTSC in information tab)
  • Effective pixels:-  PAL 752 x 582  NTSC 768 x 494 (H x V)
  • Horizontal resolution: 600 TVL
  • Signal to noise ratio:- >48dB
  • Electronic shutter: 1/50 - 1/10000 secs
  • Video output:- 1.0V+/-0.5vp-p 75 Ohms
  • Viewing angle:- 120 degrees (unless stated differently in information tab)
  • Working voltage:- DC9V - 12V +/- 0.5V
  • Consumption:- 80 mA+/- 10%
  • Waterproof rating:- IP68



Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Lighter plug

A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M7401
Vehicle
Van
Voltage
12/24 volt
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
700TVL CMOS
Camera angle
150 degrees
Compatible with
Renault Master 2014 - to date
and
Vauxhall Movano 2014 to date
and
Nissan NV400 2011 to date
