Mercedes Sprinter brake light reversing camera
Mercedes Sprinter brake light reversing camera

Mercedes Sprinter brake light reversing camera

(Inc. 20% VAT)
(£75.00 Exc. VAT)
In stock
800 g
Introduction to product

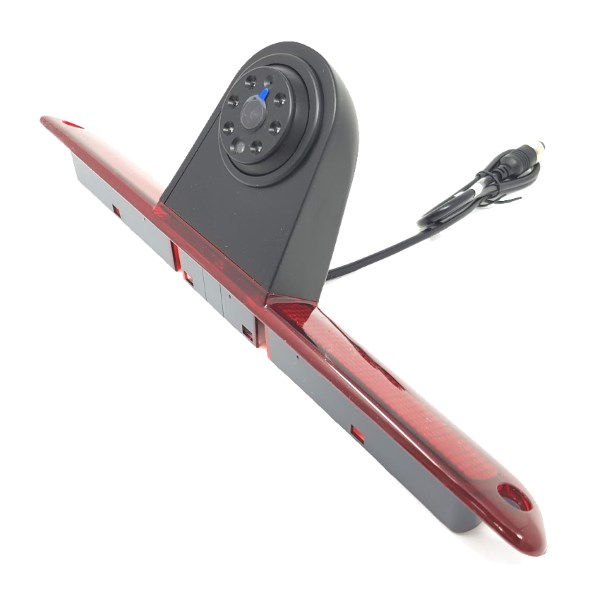

This is the third generation Mercedes Sprinter high level brake light reversing camera. It offers several adavantages over the orignal models. It has a higher camera angle of at least 150 degrees, night vision LEDS, the latest CMOS sensor offering good quality night vision, uses the existing brake lights to avoid CANBUS issues and sticks out further giving a better view down towards the bumper. There is technology built into the camera to reduce the "fish eye" effect of having a wide angled lens.

The camera is supplied without cables or adaptors. If you need these they can be selected using the drop down menus above.

Specification of Camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0 Lux (LED ON)
  • IR LEDs:                       8 pcs
  • Night vision distance: 30 feet
  • Viewing angle:           150 degrees
  • Camera lens adjustable: 20 degrees (up and down)
  • Power voltage:          12V
  • Current consumption: 150 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          976 (H) x 592 (V)
Bar Code
12 volt
Connector type
4 pin aviation
Special features
6 IR LEDs for night vision
Type of sensor
Sensor size
1/3" sensor
Camera angle
150 degrees
