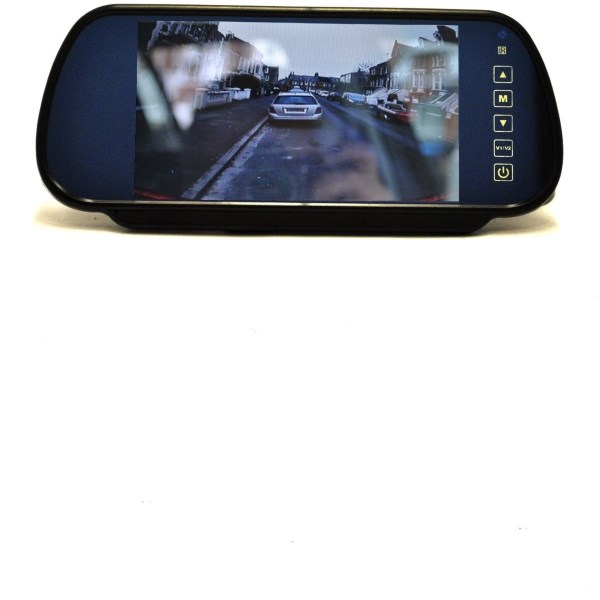

Hybrid AHD clip on mirror monitor

(Inc. 20% VAT)
(£111.67 Exc. VAT)
10 in stock
800 g
Introduction to product

This monitor will accept both CVBS and AHD video signals. It is the latest version of the AHD monitor that now has the processing power to give a smooth picture even at speed. It also has a high resolution 1024 x 600 pixel panel with wide viewing angles. The sharpness and colour of the image when used with the latest AHD cameras is impressive! It has 2 AV channels one of which can be linked to the reversing light to automatically come on when reverse is selected. The monitor comes complete with a remote control, although all the functions can be accessed by the touch buttons on the monitor.

Specification of monitor


Resolution:                                1024 x 600 Pixels

TVsystem:                                   Auto

Brightness:                                 300 cd/m2

Contrast:                                    400:1

Active area:                                154.08 (W) x 85.92 (H) mm

Viewing Angle:                           U/D50/70, R/L 70/70

Image settings:                          Brightness, Colour, Contrast

Video Formar:                            AHD/CVBS Hybrid

Mirror Flip:                                 Non-mirror. mirror, flip, mirror flip

Video Channels:                        Two channel input

Reversing delay option:            0 to 15s

Power supply:                            12/24V DC automatic selection

Bar Code
12/24 volt
Screen size
7" diagonal
Screen resolution
1024 x 600 pixels
Connector type
4 pin aviation
Video Format
