Introduction to product
The main manufacturers of CCD sensors are discontinuing production of them. The main reason is the modern CMOS sensors are now equal in performance and are cheaper to produce.You you find a link to the modern CMOS version of this camera below.
Specification of camera
- TV system :- PAL
- Effective pixels :- 960 (H) x 480 (V)
- Resolution :- 600 TVL
- Minimum illumination :- 0.0 LUX (infrared LEDs on)
- Video output :- 1.9Vp-p, 75 Ohms
- Gamma consumpton:- 0.45
- AGC:- On
- Signal to noise ratio :- better than 43.6 dB
- Electronic shutter :- 1/50 - 10000 auto
- Baclight compensation :- Auto
- Power supply :- 12V / 160mA

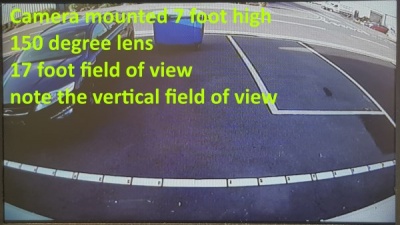

- Lens angle :- 150 degrees
- Operating temperature ;_ -30 degrees C to 70 degrees C
- Connector :- 4 pin aviation
Model
CAM103
Bar Code
5060342250780
Vehicle
Car, van
Voltage
12 volt
Connector type
4 pin aviation
TVL
600 TVL
Special features
4 IR LEDs for night vision
Type of sensor
CCD
Sensor manufacturer
Sharp
Sensor size
1/3" sensor
Camera angle
150 degrees
