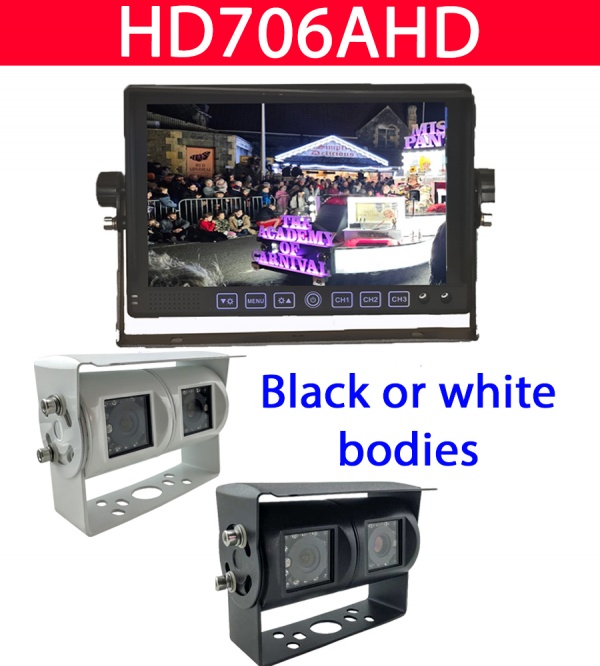

Heavy duty 7 inch AHD dash mount monitor and twin lens reversing camera

(Inc. 20% VAT)
(£220.00 Exc. VAT)
In stock
2.50 kg
Introduction to product

Heavy duty 7 inch AHD dash mount monitor and twin lens reversing camera. The camera is currently supplied with 2 single cables as the Y-cables used with the CVBS version tend to give some cross channel interference. This system is popular with motorhome owners and van drivers where the rear view is limited.The narrow angle lens is used for rear view and the downward facing wide angled lens for reversing.

Specification of camera

Image sensor and chips: FH8550M+C2398
Resolution: 1920*1080P (2 million pixels)
Night Vision: Yes
Wide Dynamic: Support (mobile frame rate 100DB)
System: PAL
Image: Mirror image
Waterproof Level: IP68
Shockproof Level: 4G
Connectors: 4 Pin aviation
Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
Power Consumption: Approx 1.8W per camera
Video Output: 1080P
Working Temperature: -20°C to +70°C
Storage Temperature: -30°C to 85°C
Stainless Steel Bracket (painted)
Built-in Lens: 3.6mm / 8.0mm

We use more than one source for these cameras at the moment. The specifications may change.

Specification of monitor
  • 7” Diagonally Measured Colour IPS screen
  • Power supply: 12V/24V
  • Power Consumption: 7.5W Max
  • Digital Screen Resolution: 1024 x3(RGB)x600
  • 3 Hybrid Inputs
  • Full function Remote Control
