Ford Transit high level brake light 700TVL reversing camera
Ford Transit high level brake light 700TVL reversing camera

Ford Transit high level brake light 700TVL reversing camera

£90.00
(Inc. 20% VAT)
(£75.00 Exc. VAT)
In stock
+
Weight
1.20 kg

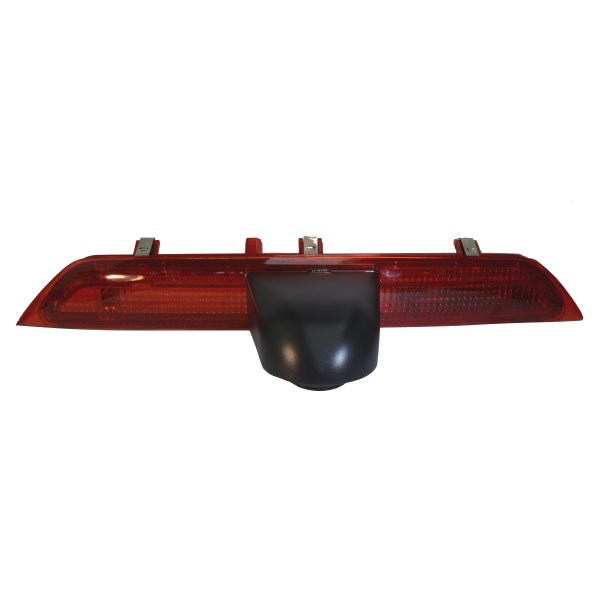

Introduction to product

This camera replaces the high level brake like on a Ford Transit. It uses a 1/3" CMOS sensor giving a resolution of 700 TVL. It uses 4 pin connections and takes its power for the camera off a suitable monitor. This version fits models from 2014 to date. It will also fit a Ford Transit Custom (up and over door) from 2012+. This replaces Ford Part Number 1899968.

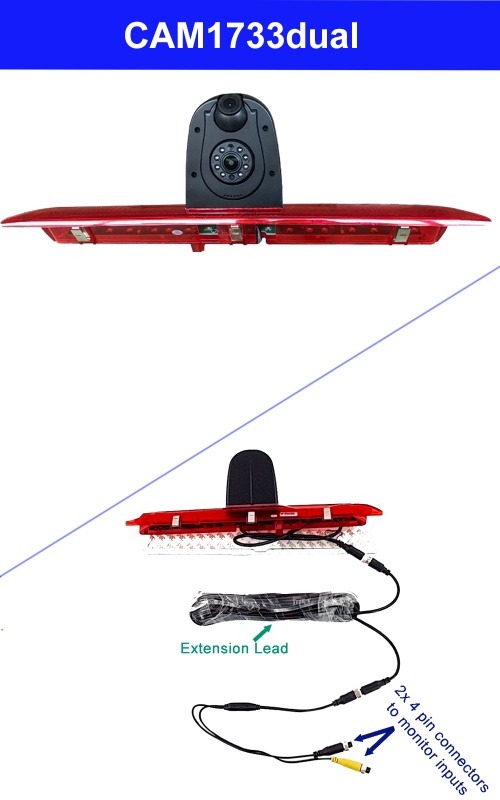

The camera is supplied without cables or adaptors. If you need these they can be selected using the drop down menus above.

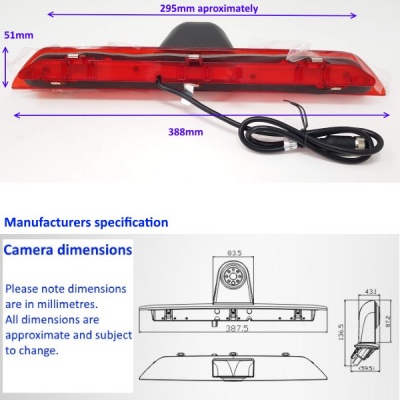

Please note:- As with all our brake light cameras we have found the odd vehicle where the brake light is different. Please check the dimensions we give.

Specification of Camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0 Lux (LED ON)
  • IR LEDs:                       8 pcs
  • Night vision distance: 30 feet
  • Viewing angle:           150 degrees
  • Camera lens adjustable: 20 degrees (up and down)
  • Power voltage:          12V
  • Current consumption: 150 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          976 (H) x 592 (V)
Model
CAM1733
Bar Code
5060342256300
Vehicle
Van
Voltage
12 volt
Connector type
4 pin aviation
TVL
700 TVL
Special features
6 IR LEDs for night vision
Type of sensor
700TVL CMOS
Sensor manufacturer
Sony
Sensor size
1/3" sensor
Camera angle
120 degrees
