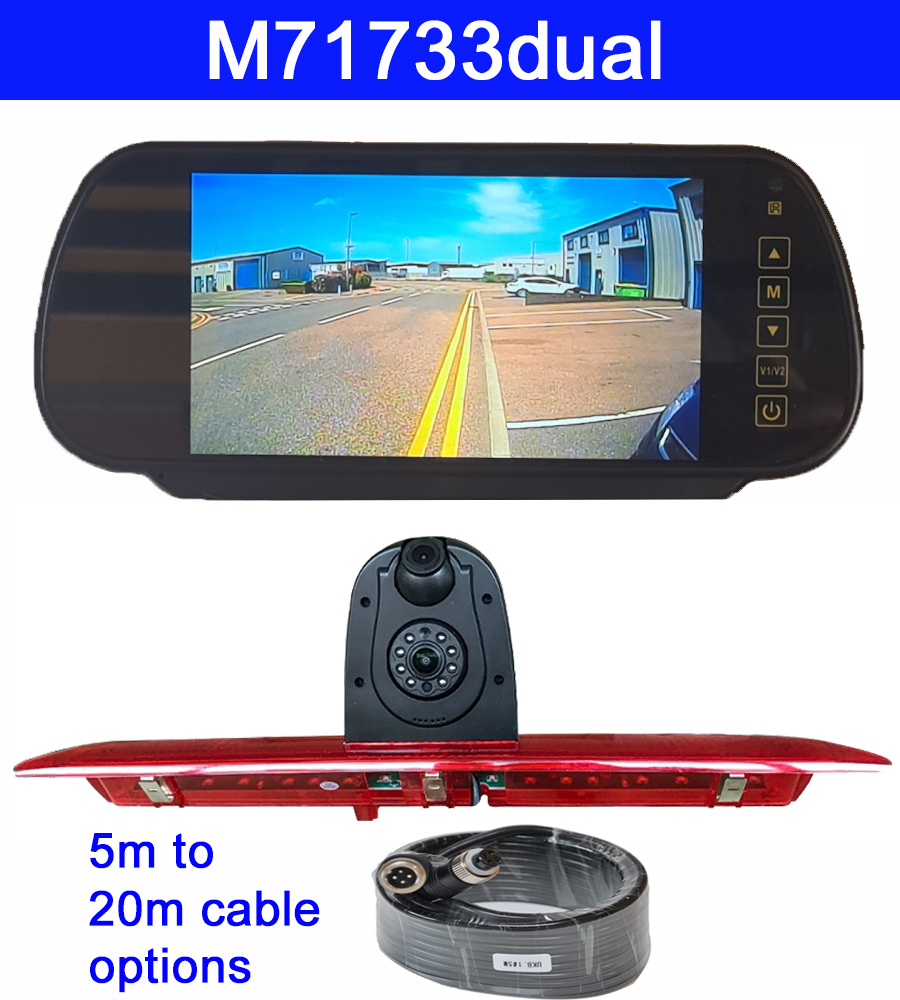

Dual lens brake light reversing camera for Ford Transit plus mirror monitor

This kit matches the clip on mirror monitor with the dual lens brake light camera for the Ford Transit or Peugeot Boxer. The downward facing lens is for reversing and will give a good colour image in the day and a black and white one at night. The driving lens is for always on use and is a narrower angle to give a better perception of distance. Although it has no IR LEDs street lighting will normally allow some night vision.

For most circumstances the 10m cable option is the recommended.

• 7 "TFT LCD color LCD
• Display ratio: 16:9 / 4:3 image flip function
• Resolution: 800 × (RGB) × 480
• Two Video AV input - 4 pin connectors,
• Full function remote control operation, touch button operation
• Input Voltage: DC 12/24V automatic selection
• Power:9W
• Brightness: 300cd/m2
• Contrast: 500:1
• Color: black
• Long life LED backlight
• 3m power loom - longer so you can easily reach the dash in a van
• Video format: CVBS
• Viewing angle: U/D 70/70 R/L 50/70
• Adjustable grid lines which can be calibrated

Please not the MON293B has no grid lines

Driving camera (upper camera)

• Sensor: 1/3 PC4089 CMOS
• Effective Pixels: 976(H) x 592(V)
• TV line: 580 TVL
• TV system: NTSC/PAL depending on the batch  (if important please email to check)
• Lens: 2.6mm
• Min illumination: 0.1 LUX
• Waterproof: IP68
• View angle: V 65 degrees, H 80 degrees D 105 degrees
• Camera lens adjustment: 20 degrees up and down
• Voltage: 12 volts
• Current consumption: 150mA
• Operating temperature: -20 to 70 degrees C
• Certificates: FCC, CE, E-mark, RoHS
• Connector: 4 pin aviation

Reversing camera (lower camera)

• Sensor: 1/3 PC4089 CMOS
• Effective Pixels: 976(H) x 592(V)
• TV line: 700 TVL
• TV system: NTSC/PAL depending on the batch  (if important please email to check)
• Lens: 1.9mm
• Min illumination: 0.0 LUX (IR LED on)
• IR LEDs: 8 pcs
• Night vision: 10m
• Waterproof: IP68
• View angle: V 85 degrees, H 130 degrees D 160 degrees
• Camera lens adjustment: 20 degrees up and down
• Voltage: 12 volts
• Current consumption: 150mA
• Operating temperature: -20 to 70 degrees C
• Guideline: Optional (some have a trigger wire to select)
• Certificates: FCC, CE, E-mark, RoHS
• Connector: 4 pin aviation
