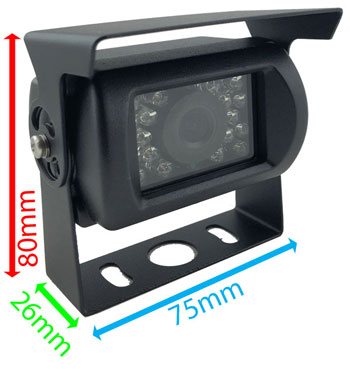

CCD PAL bracket camera with RCA connectors
CCD PAL bracket camera with RCA connectors
CCD PAL bracket camera with RCA connectors

CCD PAL bracket camera with RCA connectors

£70.00
(Inc. 20% VAT)
(£58.33 Exc. VAT)
In stock
+
Weight
350 g
Information

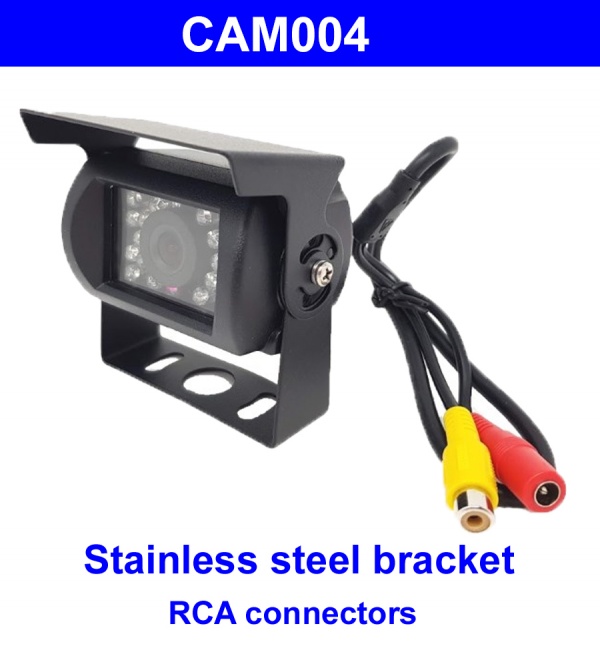

This CCD reversing Camera uses the latest 700TVL CCD sensor made by Sony. With 18 IR LEDs it gives a good image day or night. It has a stainless steel bracket to prevent it rusting. The 120 degree camera angle gives a wide field of view without causing the "fish eye" effect that distorts the image. It uses a standard phono connector and 2 .1/5.5mm male power connector. A power fly lead is supplied and you can select the RCA video cable using the drop down menu.

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation.

Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Customer Reviews (0)

Be the first to Write a Review for this item!

Model
CAM004
Bar Code
5060342250551
Vehicle
van, farm machinery
Voltage
12 volt
Connector type
RCA (phono)
TVL
700 TVL
Special features
18 IR LEDs for night vision
Type of sensor
CCD
Sensor manufacturer
Sony
Sensor size
1/3" sensor
Camera angle
120 degrees
