CCD bracket camera with RCA connectors
CCD bracket camera with RCA connectors

CCD bracket camera with RCA connectors

(Inc. 20% VAT)
(£56.67 Exc. VAT)
No stock
300 g
Introduction to product

This CCD white bracket camera uses a Sony 700TVL CCD sensor. It has a stainless steel bracket so it does not corrode. It is fully waterproof and uses RCA connectors. We sell RCA extension cables in our shop.

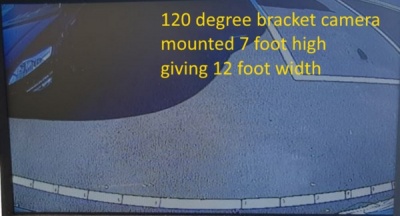

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation.

Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Bar Code
van, farm machinery
12 volt
Connector type
RCA (phono)
700 TVL
Special features
18 IR LEDs for night vision
Type of sensor
Sensor manufacturer
Sensor size
1/3" sensor
Camera angle
120 degrees
