Brake light reversing camera for New Mercerdes Vito 2016+

£98.50
(Inc. 20% VAT)
(£82.08 Exc. VAT)
+
Weight
400 g
Introduction to product

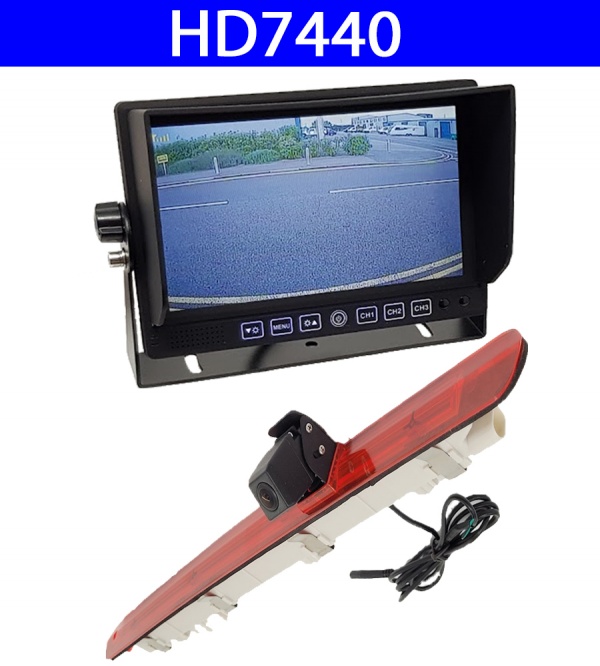

This reversing camera is for the Mercedes Vito from 2016. It replaces the existing brake light and means no holes need to be drilled to fit a reversing camera. It uses the latest 700 TVL CMOS sensor, giving a colour high resolution image during the day. At night it gives a useable image with the assistance of street lighting and the vehicle lights. It can be supplied eith with a 4 pin aviation connector or the RCA connectors. For a small additional cost you can add an extension cable.

Specification of camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0.1 Lux
  • Viewing angle:           150 degrees
  • Camera lens adjustable: Depends on model - see listing.
  • Power voltage:          12V
  • Current consumption: 120 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          728 (H) x 488 (V)
  • Waterproof:                IP68
Model
CAM4414pin
Voltage
12 volt
TVL
700 TVL
Type of sensor
CMOS
Sensor size
1/3" sensor
Camera angle
150 degrees
Video Format
NTSC
