Brake light camera for Renault Traffic, Vauxhall Vivaro, Renault Combo
Brake light camera for Renault Traffic, Vauxhall Vivaro, Renault Combo

Brake light camera for Renault Traffic, Vauxhall Vivaro, Renault Combo

£90.00
(Inc. 20% VAT)
(£75.00 Exc. VAT)
2 in stock
+
Weight
400 g
Introduction to product

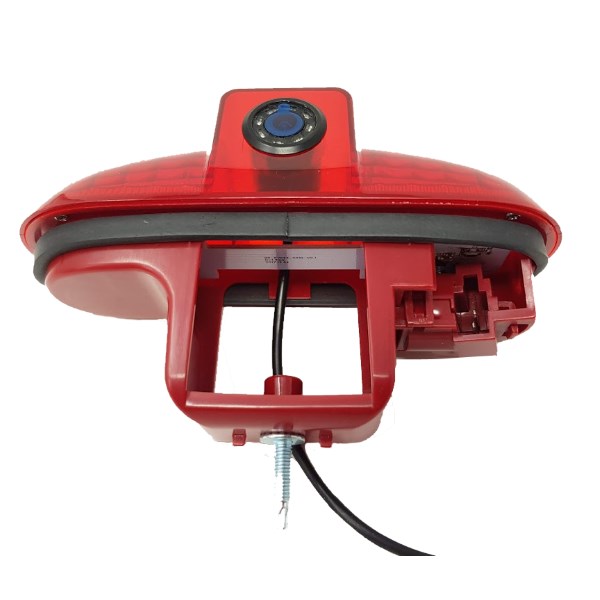

This brake light camera fits the Renault Traffic from 2001 to 2014, Combo from 2001 to 2011 and the Vauxhall Vivaro from 2001 to 2014.
It uses our standard 4 pin aviation style connector and a 700 TVL CMOS sensor. This is a PAL video format and is mirror image.

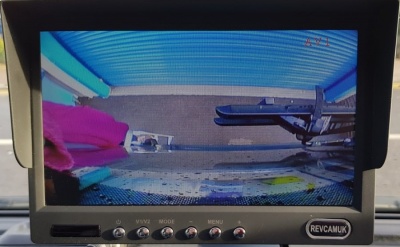

The photograph of the monitor shows it displaying a picture from this camera. This was our attempt to show the camera in use, but as we do not have a Renault Traffic we held it at approximately the correct height. The camera will give the full width of the vehicle plus a little extra at the sides. It gives a nice high resolution colour image which is much improved compared to older types of CMOS sensors.

The camera is supplied without cables or adaptors. If you need these they can be selected using the drop down menus above.

* Please note monitor is not included.

Specification of camera

Image Type

1/3" CMOS

Night vision

7 IR LEDs

TV System

NTSC/PAL

Lens Angle (Deg.)

170 degree

IP Rating

IP69K

Vibration Rate

10G

Connector

1M 4P BMW to 4P lock connector

Effective Pixels

N: 510×492 pixels P: 500×582 pixels

Horizontal Resolution

700TVL

B.L.C

Back light Compensation (Auto)

White Balance

Auto White Balance (Auto)

Minimum Illumination

0Lux (LED ON)

S/N Ratio

≥48dB

Electronic Shutter

1/60~1/100,000 Sec

Power consumption

<3W

Built-in Lens

f: 2.8mm

Power Consumption

DC 12V (+/-10%)

Audio

without

Operation Temperature

-30℃~+70℃.RH95% Max

Storage Temperature

-40℃~+80℃.RH95% Max

Certificate

FCC,CE, E-mark,ISO9001, RoHS

Model
CAM400
Bar Code
5060342256324
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
CMOS
Sensor size
1/3" sensor
Camera angle
150 degrees
Compatible with
Renault Traffic from 2001 to 2014
and
Vauxhall Vivaro from 2001 to 2014
and
Renault Combo from 2001 to 2011
