7 inch mirror monitor monitor and Peugeot Expert Reversing Camera
7 inch mirror monitor monitor and Peugeot Expert Reversing Camera
7 inch mirror monitor monitor and Peugeot Expert Reversing Camera

7 inch mirror monitor monitor and Peugeot Expert Reversing Camera

£190.00
(Inc. 20% VAT)
(£158.33 Exc. VAT)
3 in stock
+
Weight
2.20 kg
Introduction to product

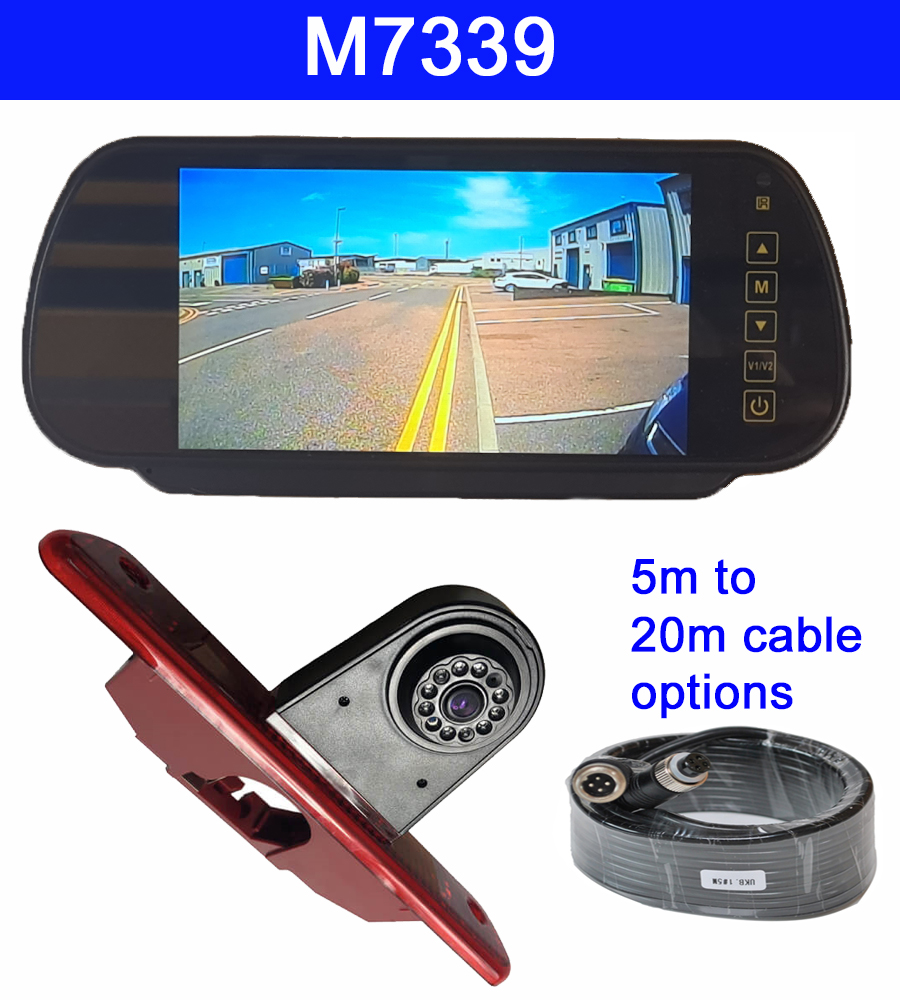

This matches a 700 TVL Peugeot Expert brake light reversing camera to our popular MON293 clip on mirror colour rear view monitor. The clip on mirror monitor will give grid lines that you can move and calibrate. It gives a good high resolution colour day view and aided by street lighting and the vehicle lights a usable black and white night view.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • Sensor:- 1/3 Modern CMOS
  • TV lines:- 700
  • Lens:- 1.7mm
  • Min illumination:- 0 Lux (LED on)
  • IR leds:- 6
  • Night vision distance:- 35ft
  • Waterproof rating:- IP68
  • Viewing angle:- 150 degrees
  • Power voltage:- 12V
  • Operation temperature:- -20 C to + 70C
  • Microphone:- On some models depending on batch. Email to confirm if needed.
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Lighter plug

A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M7339
Bar Code
5060342251893
Vehicle
Van
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
Special features
Adjustable grid lines
Type of sensor
CCD
Sensor size
1/3" sensor
Camera angle
150 degrees
Compatible with
Peugeot Expert 2007 to 2016
and
Citreon Jumpy 2007 to 2016
and
Toyota Proace 2007 to 2016
