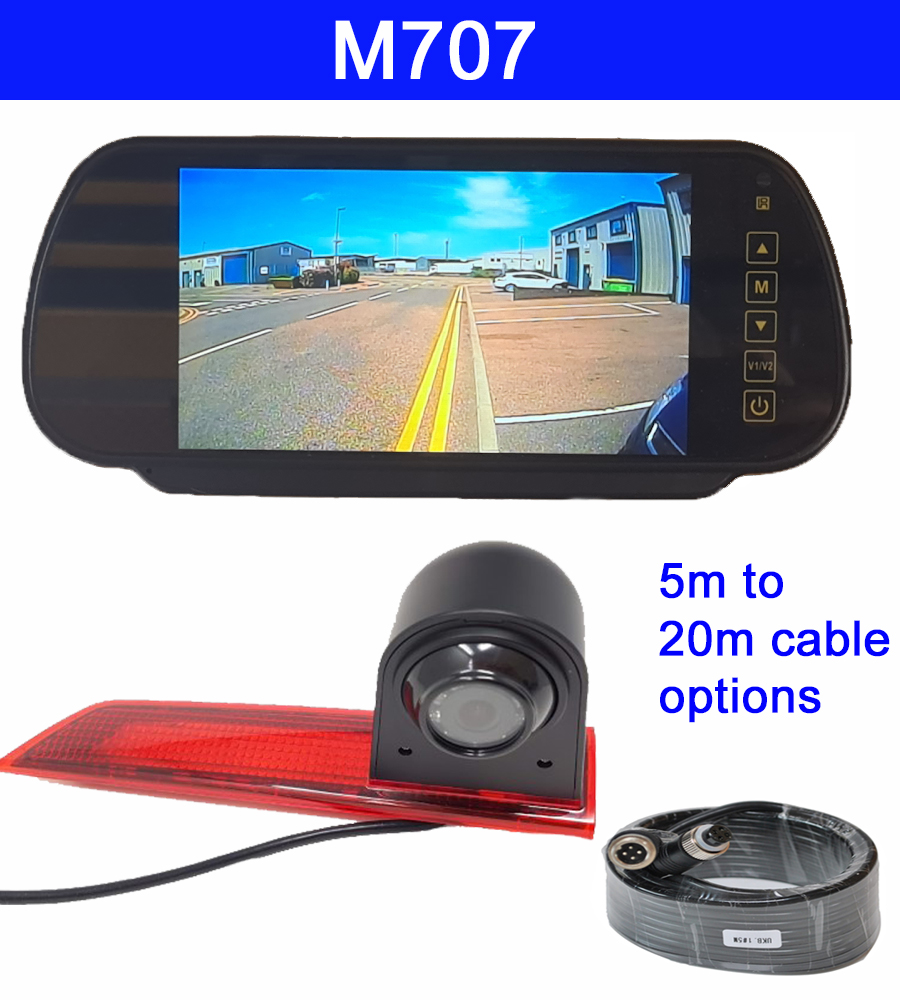

This matches a CCD Ford Transit Custom brake light rebersin camera to our popular MON293 clip on mirror colour rear view monitor. The advantage of the brake light camera is you do not need to drill holes in the bodywork. It has a wide angled lens to give a view across the full rear of the vehicle. The 700 TVL CCD sensor gives a good image night or day. The 800 x 480 LCD panel in the monitor shows the image at its best. Our mirror monitor has the option to show grid lines when in reverse. These lines can be moved and calibrated with distances making it a very useful feature. We do have a version of the mirror monitor with a bracket to fit the existing mirror stub on the window. This version however lacks the guideline feature. It can be found in the vehicle specific systems.
The kit is available in 2 versions selected by a drop down menu. Version 1 is for early models with a bulb brake light. Version 2 is for later models that use a LED brake light.
- 7 "TFT LCD color LCD
- Display ratio: 16:9 / 4:3 image flip function
- Resolution: 800 × (RGB) × 480
- Two Video AV input - 4 pin connectors,
- Full function remote control operation, touch button operation
- Input Voltage: DC 12/24V automatic selection
- Brightness: 300cd/m2
- Contrast: 500:1
- Color: black
- Long life LED backlight
- 3m power loom - longer so you can easily reach the dash in a van
- Video format: CVBS
- Viewing angle: U/D 70/70 R/L 50/70
- Adjustable grid lines which can be calibrated
Please not the MON293B has no grid lines
On all of our camera systems we have a wide variety of cable and wireless options. The information below shows you whet each option means.
5m 7.5m 10m 12.5m 15m 20m
These are our standard 4 pin extension cables. These options allow you to select what length you need. They are in metres so multiply by 3 to change into feet. Having longer you need will not affect the picture and any extra cable should be coiled loosely where is cannot get damaged.
15m 8mm or 12.5 8mm
These are our 12.5m or 15m cables with an 8mm link. This is useful if you need to thread a cable front to back through a monitorhome and want to keep the size of the hole needed small.
We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.
This is our medium duty trailer link suitable for caravans and farm trailers.
This is our heavy duty trailer link as used on heavy goods vehicles.
We now supply these as our CAB011 1m with a CAB049 and CAB052. This means if a socket getes damaged it is simple to replace without having to rewire the tow vehicle or trailer. If you wish different lengths of cable then please contact us.
60m wireless bridge
This is a version of our wireless bridge that will create an interference free digital wireless system. It is suitable to use when you only need to connect 1 camera wirelessly. It is an improved specification on our previous digital wireless bridge. It is waterproof, but we feel it is always best to protect it from the main force of the rain.
100m digital bridge
This is a version of our interference free waterproof digital bridge to create an interference free wireless system. It can be used if you want to add more than one wireless camera to a system. Again it is waterproof, but it is always best to protect from the main force of driving rain.
Stand style bracket
This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
Easy wire fuse tap
These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 1m long and terminates in a 2.1/5.5 power connector.
