7 inch mirror monitor monitor and Fiat Doblo brake light reversing camera
7 inch mirror monitor monitor and Fiat Doblo brake light reversing camera
7 inch mirror monitor monitor and Fiat Doblo brake light reversing camera

7 inch mirror monitor monitor and Fiat Doblo brake light reversing camera

£188.00
(Inc. 20% VAT)
(£156.67 Exc. VAT)
In stock
+
Weight
2.10 kg
Introduction to product

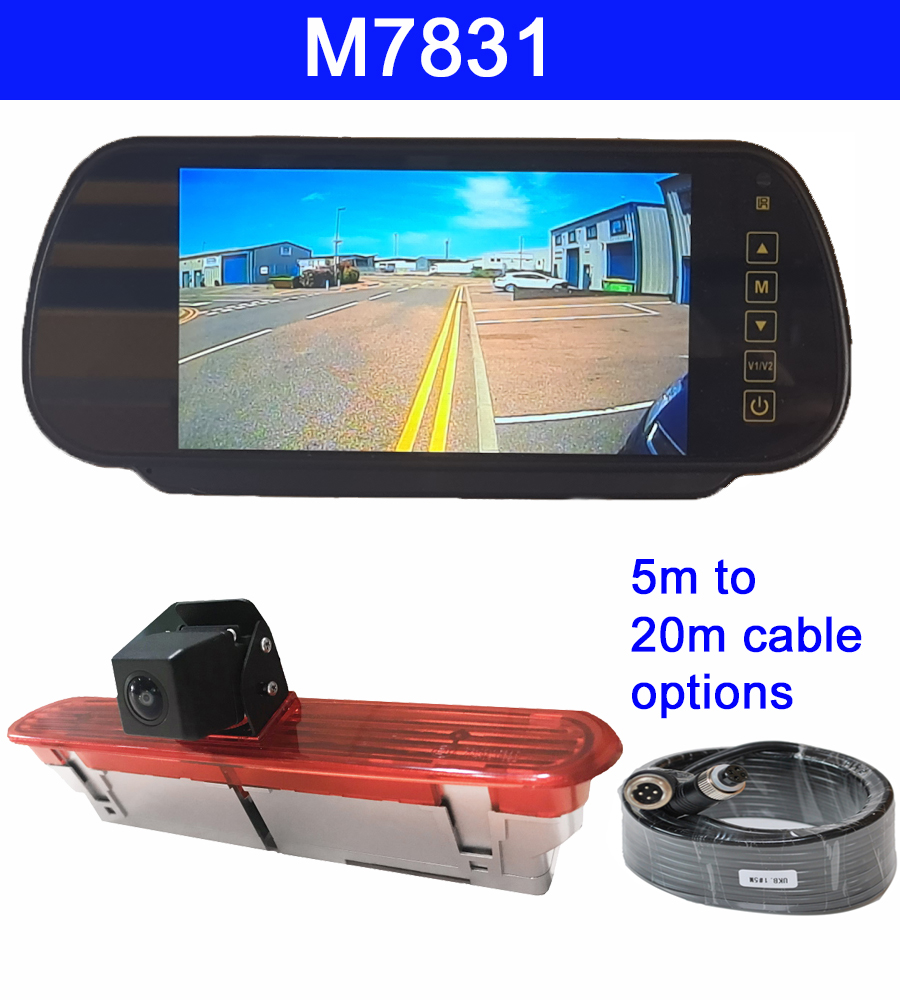

This is our top of the range system for a Fiat Doblo. It matches our 7" high resolution mirror monitor monitor with a reversing camera that replaces the high level brake light. This camera uses a 700 TVL CMOS sensor with a low current drain to prevent overheating that can affect CCD cameras in enclosures.

The camera connects to the monitor using locking 4 pin connectors for reliability. There is a two year guarantee on this system.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0.1 Lux
  • Viewing angle:           150 degrees
  • Camera lens adjustable: Depends on model - see listing.
  • Power voltage:          12V
  • Current consumption: 120 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          728 (H) x 488 (V)
  • Waterproof:                IP68
Model
M7831
Bar Code
5060342251978
Vehicle
Van
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
Hi-Res CMOS
Sensor size
1/3" sensor
Camera angle
150 degrees
Compatible with
Fiat Doblo 2010 to date
and
Opel Combo 2011 to 2018
