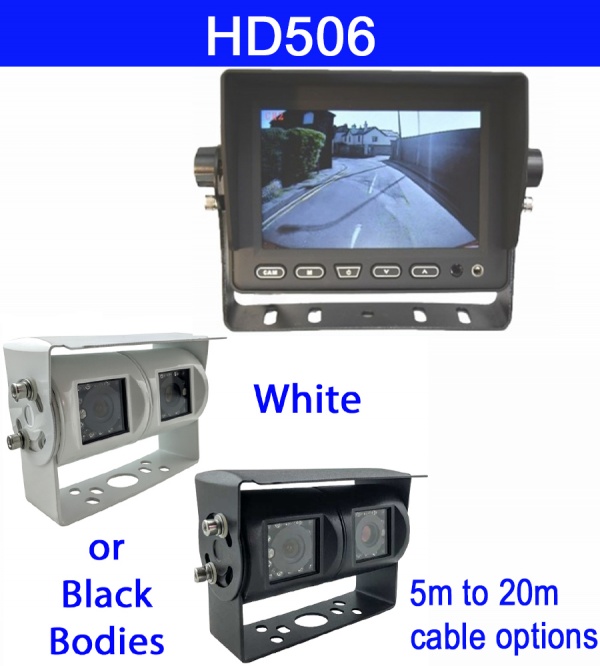

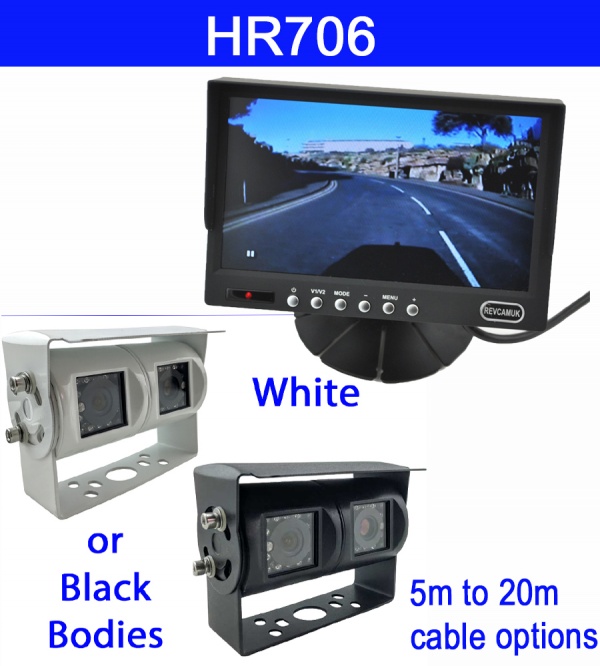

This matches our high resolution colour rear view monitor with our twin lens CCD reversing camera. We have options of white or black bodied camera with cable lengths of 5m, 10m, 12.5m, 15m and 20m. The system just requires connecting to a power source as the cameras get their power from the monitor. The MON509D which forms the basis of the system gives a nice bright image.
The 8mm disconnect points on the camera are designed to be internal. If they are external it is hard to prevent water getting into the connector. If you wish to run the cable over the roof then please seek advice. We normally have these cameras without the disconnect point.

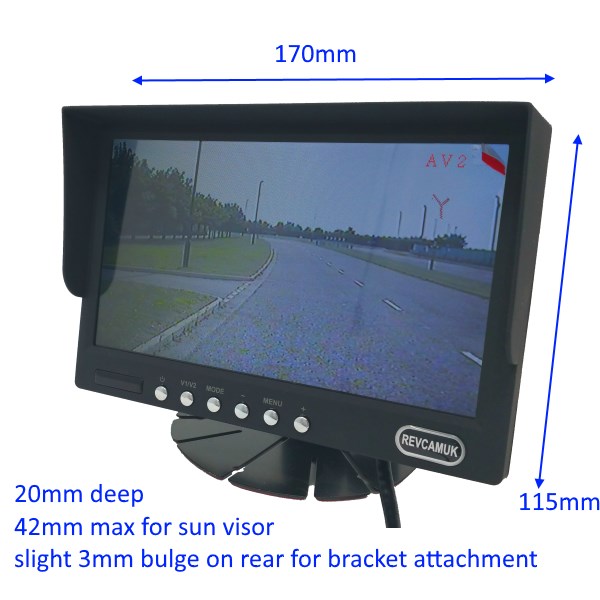

- Screen size:7 inch (diagonal length)
- Brand new LCD panel, high resolution
- [16 : 9 ] wide screen display
- 2 video inputs
- PAL & NTSC auto-switching
- Resolution:800 x R.G.B x 480 dots
- Power supply: DC 12 V/24V auto switching
- Remote control, OSD menu;
- 4 PIN connectors
- View angle range:(left/right) 65º (top) 40º (down) 15º
Supplied with quick release style bracket and 8mm disconnect point for easy removal of monitor.
- Image Device:1/3 SONY CCD - Where possible we use the Sony EFFIO-E 4140-811 chipset but cannot guarantee it due to supply issues.
- TV System: PAL
- Effective Pixels: 976*582
- Scanning System: 2:1 Interlace
- Sync. System: Internal
- Resolution: 700 TV lines
- Minimum Illumination:0 Lux (IR leds on)
- Video Output:1.0vp-p,75Ohm
- Gamma Consumption: 0.45
- AGC: Auto
- S/N Ratio: Better than 48dB
- White Balance: Auto
- Electronic Shutter: 1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
- BLC: Auto
- Current Consumption:100mA
- Power Supply:DC9V-15V
- Operating Temperature: -20~+70 RH95% Max
- Storage Temperature: -40~ 80 RH95% Max
- Lens:2.8mm lens/8mm
- Lens Angle:120°(Left),45°(Right)
Camera angles quoted are a calculated measurement based on the focal length of the lens and size of sensor. They are given as a diagonal measurement. When a camera displays on a monitor there is a certain amount of cropping to get the picture to fit. To overcome these issues we have measured the horizontal camera angle with the camera image displayed on a 7" high resolution screen. The angle given may be subject to change between batches so if it is critical then please ask us to double check. When comparing with other web sites please remember the camera angles are often exagerated.
Our measured horizontal camera angle for the narrow angled lens is 35 degrees and 85 degrees for the wide angled lens.
On all of our camera systems we have a wide variety of cable and wireless options. The information below shows you whet each option means.
5m 7.5m 10m 12.5m 15m 20m
These are our standard 4 pin extension cables. These options allow you to select what length you need. They are in metres so multiply by 3 to change into feet. Having longer you need will not affect the picture and any extra cable should be coiled loosely where is cannot get damaged.
15m 8mm or 12.5 8mm
These are our 12.5m or 15m cables with an 8mm link. This is useful if you need to thread a cable front to back through a monitorhome and want to keep the size of the hole needed small.

Bailey adaptor
We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

CAB011S
This is our medium duty trailer link suitable for caravans and farm trailers.

CAB011
This is our heavy duty trailer link as used on heavy goods vehicles.

We now supply these as our CAB011 1m with a CAB049 and CAB052. This means if a socket getes damaged it is simple to replace without having to rewire the tow vehicle or trailer. If you wish different lengths of cable then please contact us.
60m wireless bridge
This is a version of our wireless bridge that will create an interference free digital wireless system. It is suitable to use when you only need to connect 1 camera wirelessly. It is an improved specification on our previous digital wireless bridge. It is waterproof, but we feel it is always best to protect it from the main force of the rain.
100m digital bridge
This is a version of our interference free waterproof digital bridge to create an interference free wireless system. It can be used if you want to add more than one wireless camera to a system. Again it is waterproof, but it is always best to protect from the main force of driving rain.
Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
Easy wire fuse tap

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 1m long and terminates in a 2.1/5.5 power connector.
