£195.00
(Inc. 20% VAT)
(£162.50 Exc. VAT)
In stock
+
Weight
2.10 kg
Introduction to product

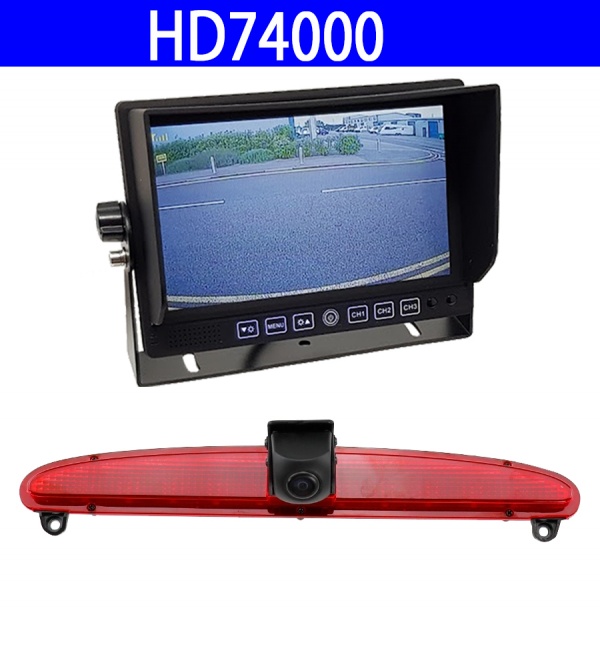

This matches a 700TVL Iveco Daily brake light reversing camera to our popular MON705 stand on dash colour rear view monitor. The system is usually wired in to the reversing light so it comes on automatically when reverse is selected. It has a wide angled reversing camera to give the full width of the van.





Specification of monitor
  • Resolution : 800 x R.G.B x 480
  • Aspect Ratio : 16:9 image
  • 3 way video input , 2 way audio input, with AV-IN
  • Power Supply : DC 9V-32V
  • System : PAL / NTSC Auto-Switching
  • OSD Menu , Remote Control
  • Built-in loudspeaker
  • Varying languages display
  • With stand & U shape bracket
  • Light sensor automatic adjustment
  • Size of main body 180mm (W) x 121mm (H) x 23mm (deep)
  • Digital colour panel with long life LED backlight
Specification of camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0.1 Lux
  • Viewing angle:           150 degrees
  • Camera lens adjustable: Depends on model - see listing.
  • Power voltage:          12V
  • Current consumption: 120 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          728 (H) x 488 (V)
  • Waterproof:                IP68
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Lighter plug

A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
HD74000
Bar Code
5060342251442
Vehicle
Van
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
Special features
Auto dims at night
Type of sensor
700TVL CMOS
Camera angle
150 degrees
Compatible with
Iveco Daily 2011 to date
