Stand on dash AHD monitor

Stand on dash AHD monitor
Our Price:  £150.00(Inc. 20% VAT)(£125.00 Exc. VAT)

Model:  MON715AHD
Bar Code:  5060342258625

Weight:  1.10 kg



No stock

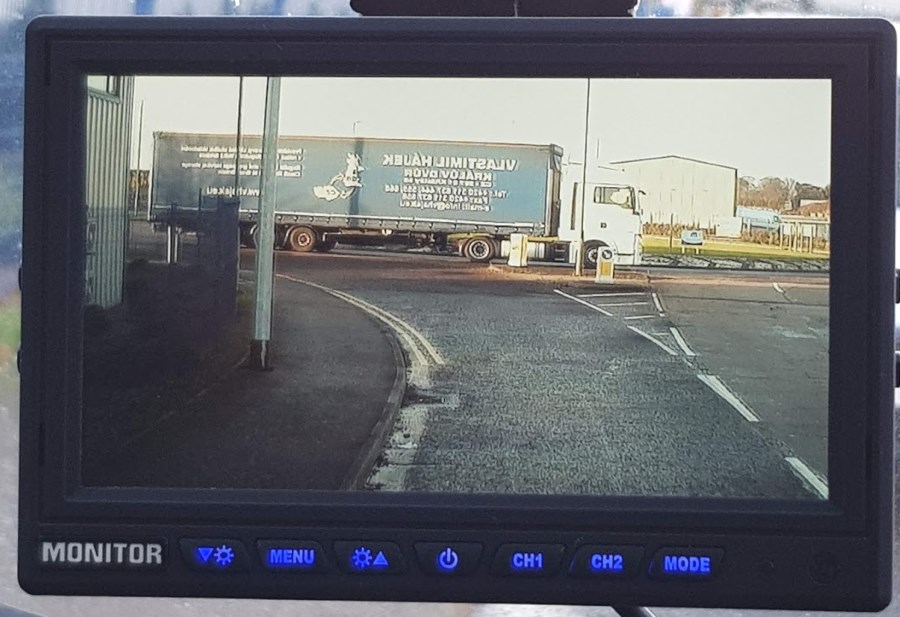

This monitor has 2 hybrid AHD inputs although it works best with AHD reversing cameras. It has a bright high resolution 1024 x 600 pixel colour panel. A useful feature of the monitor is the mode button that will adjust the image to reduce glare at night with a simple press of the button. These are the latest technology being used for reversing camera systems. They build the picture on the screen in a different way to a normal monitor using CVBS cameras. Essentially the image is a complete frame rather than having interlaced lines built up. The result is a very sharp image with good colour reproduction.

The monitor uses 4 pin connectors and can be used on 12v or 24v vehicles. It comes complete with a wiring loom, remote control and stand for the dash. It has a 2 year guarantee.

Screen ratio :- 16:9

Back light luminance :- LED, 300 cd/m2

Resolution :- 1024 x RGB x 600

Compatible system :- NTSC & PAL automatic detect

OSD control :- Colour, brightness, contrast, volume, language

Viewing angle : - Horizontal 70 degrees L & R, vertical 50 degrees down 70 degrees up

Image rotation : - Up/down, left/right

Power requirement : - DC12 - 24V

Power consumption : - 5W

Storage temperature : --30 to 80 degrees C

Working temperature : - -20 to 70 degrees C

Size : - 180 (L) x 121(W) x 23 (D)mm

Weight : - 630g

Features : - Removeable sun visor, blue illuminated menu buttons
