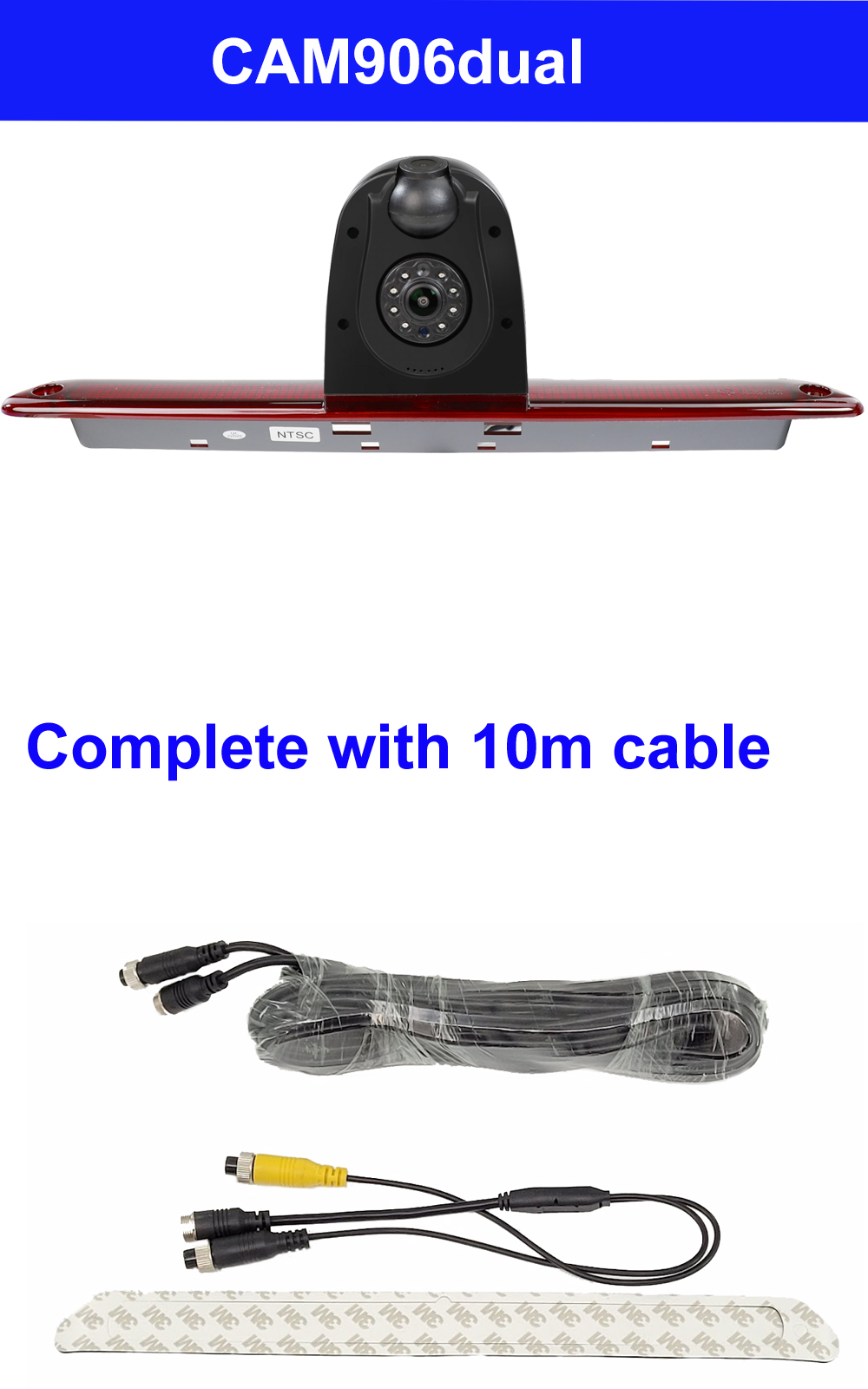

Mercedes Sprinter dual lens reversing camera

Mercedes Sprinter dual lens reversing camera

£165.00
(Inc. 20% VAT)
(£137.50 Exc. VAT)
4 in stock
–
+
Weight
900 g
Introduction to product
This is the latest version of the dual lens brake light reversing camera to fit the Mercedes Sprinter. The one lens is pointing down to give a good view of the rear of the van both during the day and at night. It has a wide angled lens fitted to cover the complete rear of the van and also see a short distance back down the road. The direction the camera points has a small 20 degree adjustment to get the optimal view. The second lens points back down the road to be used as an always on rear view camera. When the product was being developed we encouraged the manufacturer to adjust the design to give better adjustment on this camera. We also asked for the camera to have a narrow angled view so it give a better perception of distance. This lens does not have IR LEDs as they are not effective on cameras looking into the distance. It does use a modern CMOS sensor that is very sensitive to light so as lond as there are street lights you should get good night vision.
Dual camera specification

Driving camera (upper camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 580 TVL
  • TV system: NTSC/PAL depending on the batch  (if important please email to check)
  • Lens: 2.6mm
  • Min illumination: 0.1 LUX
  • Waterproof: IP68
  • View angle: V 65 degrees, H 80 degrees D 105 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation

Reversing camera (lower camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 700 TVL
  • TV system: NTSC/PAL depending on the batch  (if important please email to check)
  • Lens: 1.9mm
  • Min illumination: 0.0 LUX (IR LED on)
  • IR LEDs: 8 pcs
  • Night vision: 10m
  • Waterproof: IP68
  • View angle: V 85 degrees, H 130 degrees D 160 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Guideline: Optional (some have a trigger wire to select)
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation
Model
CAM906dual
Vehicle
Car, van
Voltage
12 volt
Connector type
4 pin aviation
Type of sensor
700TVL CMOS
Sensor size
1/3" sensor
Video Format
NTSC
Special features 2
Dual Lens
