This matches the AHD version of our heavy duty MON705 with two quality AHD bracket cameras. The monitor uses a 1024 x 600 pixel panel with a high brightness screen and wide viewing angles. It is a hybrid monitor so you can mix normal CVBS cameras and AHD cameras. The AHD bracket camera used has exceptional night vision. We will be adding photographs before we make the system live in a few days. One thing to note is AHD camera systems activate a little slower than our CVBS versions. We estimate it takes 3 seconds from activation to showing a picture.
The following pictures show screen shots of this system in various situations. We use a mobile phone for these pictures as they seem to offer the best results. One problem we come across is you get "interefernce patterns" on the photograph that are not there on the actual monitor. Also the night views tend to be a little more blurred than the actually are. The results though will give an impression of what you will see
.

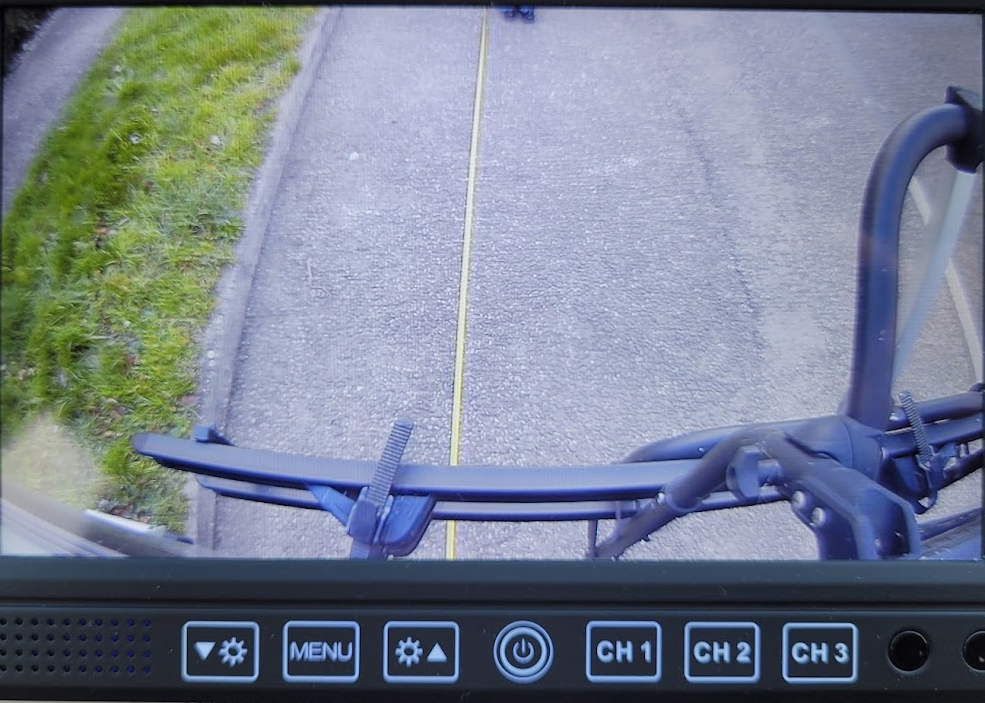

This photograph is a day view with the lens angled down. You can just see the boots of my partner who is 12 foot back from the vehicle. The camera was mounted about 7.5 feet high. The corner of the van is by the kerb so it does see at least 2 foot beyong that either side.
This shows the view when you are in an area with street lighting and the vehicle lights on.
In this photograph we turned the vehicle lights off and the only illumination is from the IR LEDs and street lights.

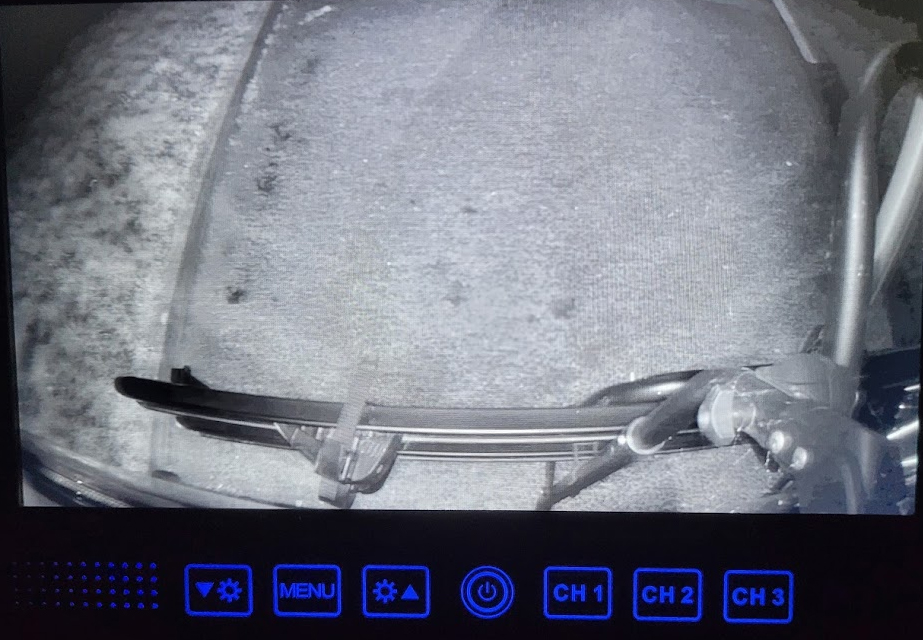

In this image we are back to an area with no lighting at all on a dark night with no moon. The only illumination is from the IR LEDs. These form a focused beam which is why in the top corners it is dark.
