Dual lens brake light reversing camera for Ford Transit Custom plus mirror monitor
Dual lens brake light reversing camera for Ford Transit Custom plus mirror monitor

Dual lens brake light reversing camera for Ford Transit Custom plus mirror monitor

£240.00
(Inc. 20% VAT)
(£200.00 Exc. VAT)
+
Weight
2.10 kg
Introduction to product

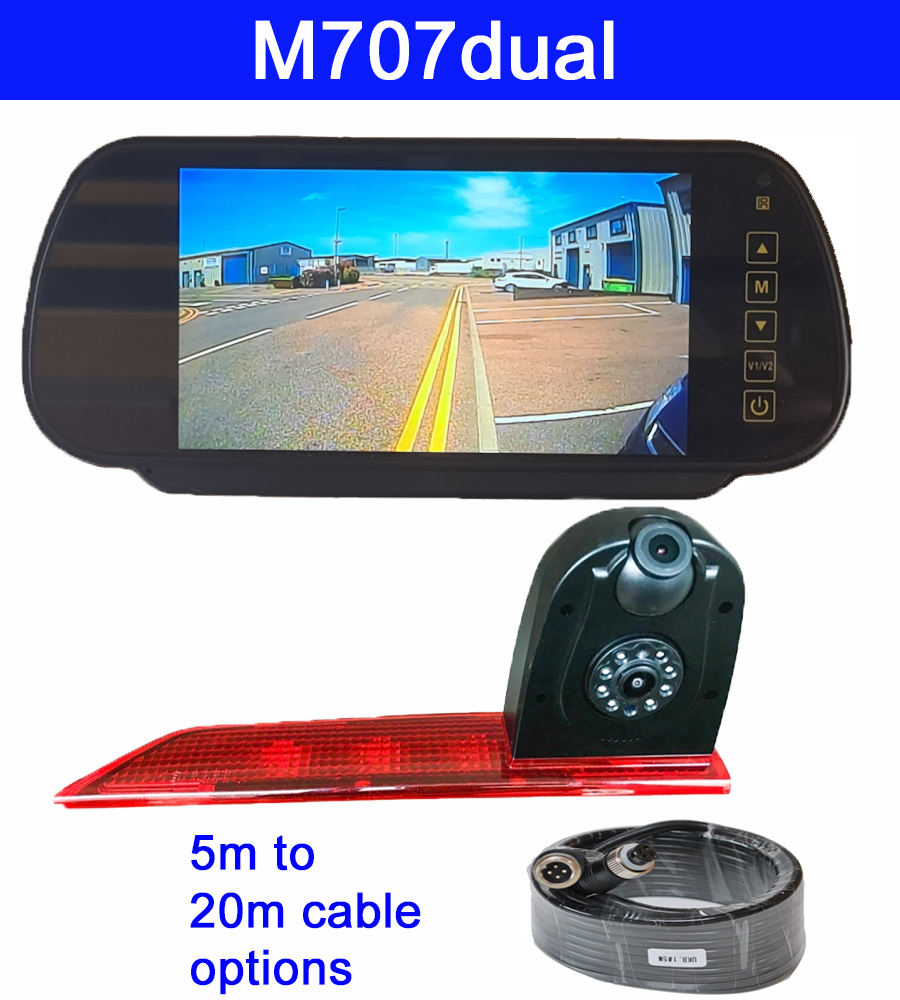

This kit matches the clip on mirror monitor with the dual lens brake light camera for the Ford Custom. The downward facing lens is for reversing and will give a good colour image in the day and a black and white one at night. The driving lens is for always on use and is a narrower angle to give a better perception of distance. Although it has no IR LEDs street lighting will normally allow some night vision. There are 2 versions of this kit depending on the age of the vehicle. This can be selected using the drop down menu.

For most circumstances the 10m cable option is the recommended.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Dual camera specification

Driving camera (upper camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 580 TVL
  • TV system: NTSC/PAL depending on the batch  (if important please email to check)
  • Lens: 2.6mm
  • Min illumination: 0.1 LUX
  • Waterproof: IP68
  • View angle: V 65 degrees, H 80 degrees D 105 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation

Reversing camera (lower camera)

  • Sensor: 1/3 PC4089 CMOS
  • Effective Pixels: 976(H) x 592(V)
  • TV line: 700 TVL
  • TV system: NTSC/PAL depending on the batch  (if important please email to check)
  • Lens: 1.9mm
  • Min illumination: 0.0 LUX (IR LED on)
  • IR LEDs: 8 pcs
  • Night vision: 10m
  • Waterproof: IP68
  • View angle: V 85 degrees, H 130 degrees D 160 degrees
  • Camera lens adjustment: 20 degrees up and down
  • Voltage: 12 volts
  • Current consumption: 150mA
  • Operating temperature: -20 to 70 degrees C
  • Guideline: Optional (some have a trigger wire to select)
  • Certificates: FCC, CE, E-mark, RoHS
  • Connector: 4 pin aviation
Model
M707dualBulb
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
CMOS
Camera angle
120 degrees and 60 degrees
Compatible with
Ford Custom Barn Doors - version selectable
