Introduction to product

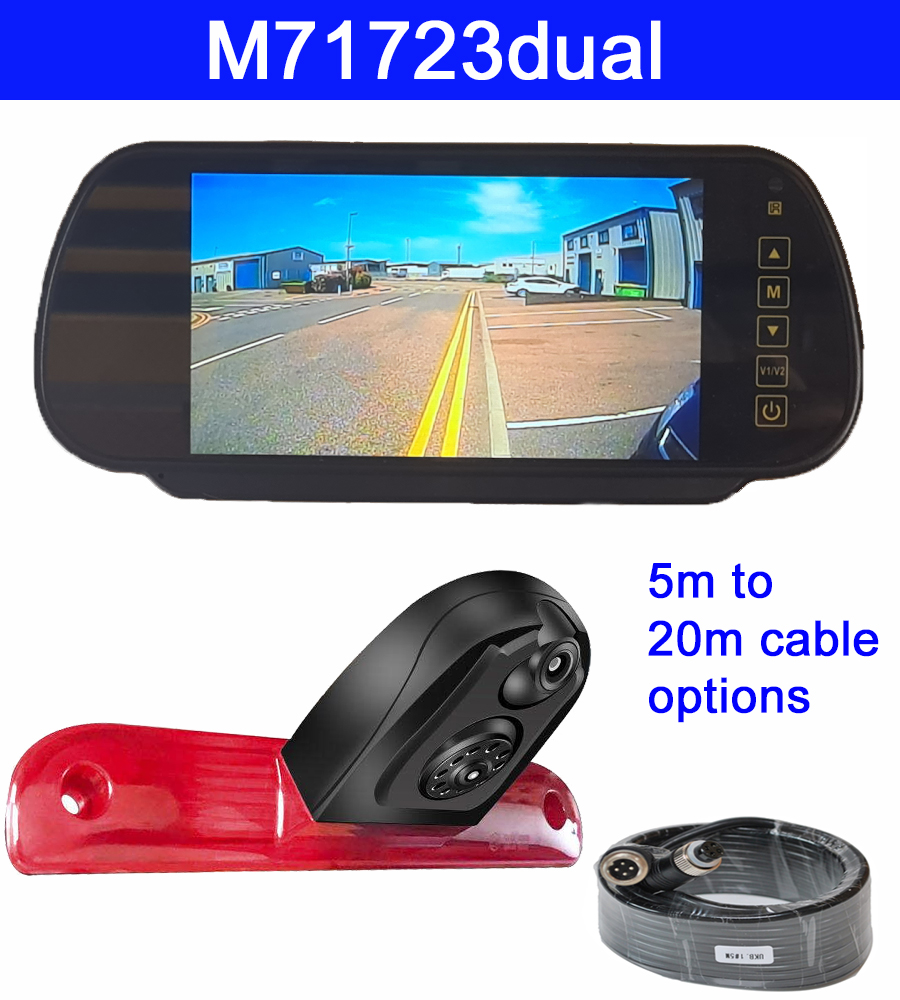

This kit matches the clip on mirror monitor with the dual lens brake light camera for the Fiat Ducato or Peugeot Boxer. Although the camera is for the latest version of these vans it can be fitted to the older versions by using longer bolts and nuts (if you have the patience and a good supply of nuts!). The downward facing lens is for reversing and will give a good colour image in the day and a black and white one at night. The driving lens is for always on use and is a narrower angle to give a better perception of distance. Although it has no IR LEDs street lighting will normally allow some night vision.
Specification of monitor
- 7 "TFT LCD colour LCD
- Display ratio: 16:9 / 4:3 image flip function
- Resolution: 800 × (RGB) × 480
- Two Video AV input - 4 pin connectors,
- Full function remote control operation, touch button operation
- Input Voltage: DC 12/24V automatic selection
- Power:9W
- Brightness: 300cd/m2
- Contrast: 500:1
- Colour: black
- Long life LED backlight
- 3m power loom - longer so you can easily reach the dash in a van
- Video format: CVBS
- Viewing angle: U/D 70/70 R/L 50/70
- Adjustable grid lines which can be calibrated

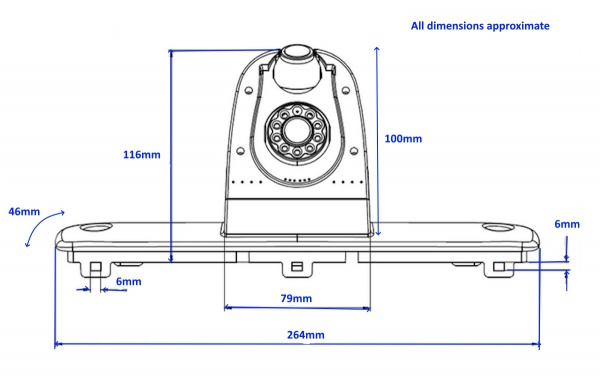

Dual camera specification
Driving camera (upper camera)
- Sensor: 1/3 PC4089 CMOS
- Effective Pixels: 976(H) x 592(V)
- TV line: 580 TVL
- TV system: NTSC/PAL depending on the batch (if important please email to check)
- Lens: 2.6mm
- Min illumination: 0.1 LUX
- Waterproof: IP68
- View angle: V 65 degrees, H 80 degrees D 105 degrees
- Camera lens adjustment: 20 degrees up and down
- Voltage: 12 volts
- Current consumption: 150mA
- Operating temperature: -20 to 70 degrees C
- Certificates: FCC, CE, E-mark, RoHS
- Connector: 4 pin aviation
Reversing camera (lower camera)
- Sensor: 1/3 PC4089 CMOS
- Effective Pixels: 976(H) x 592(V)
- TV line: 700 TVL
- TV system: NTSC/PAL depending on the batch (if important please email to check)
- Lens: 1.9mm
- Min illumination: 0.0 LUX (IR LED on)
- IR LEDs: 8 pcs
- Night vision: 10m
- Waterproof: IP68
- View angle: V 85 degrees, H 130 degrees D 160 degrees
- Camera lens adjustment: 20 degrees up and down
- Voltage: 12 volts
- Current consumption: 150mA
- Operating temperature: -20 to 70 degrees C
- Guideline: Optional (some have a trigger wire to select)
- Certificates: FCC, CE, E-mark, RoHS
- Connector: 4 pin aviation
Model
M71723dual
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
CMOS
Camera angle
120 degrees and 60 degrees
Compatible with
Fiat Ducato 2006 to date (select version)
and
Citreon Relay 2006 to date (select version)
and
Peugeot Boxer 2006 to date (select version)
