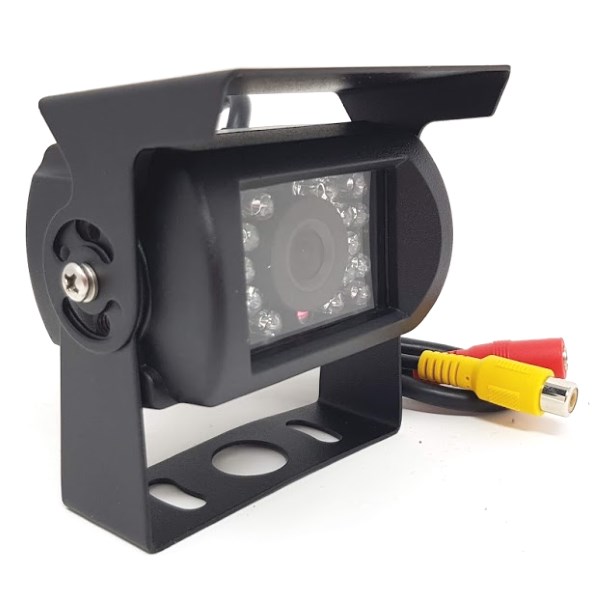

CMOS bracket reversing camera with RCA connectors

CMOS bracket reversing camera with RCA connectors
Our Price:  £40.00(Inc. 20% VAT)(£33.33 Exc. VAT)

Model:  CAM003
Bar Code:  5060342250544
Vehicle:  van, farm machinery
Voltage:  12 volt
Connector type:  RCA (phono)
TVL:  420 TVL
Special features:  18 IR LEDs for night vision
Type of sensor:  CMOS
Sensor manufacturer:  Micron
Camera angle:  120 degrees
Video Format:  PAL

Weight:  400 g



2 in stock

This CMOS bracket reversing camera makes the ideal basis for a low cost reversing camera system if cost is an important factor. Unlike other low cost bracket cameras we have these made with a stainless steel bracket. Mild steel brackets have a habit of rusting quickly.  It has a wide angled lens which is quoted as 120 degrees by the supplier. It uses a good quality CMOS sensor and has 18 IR LEDs for night vision. The night vision is not as good as a CCD camera, but will be of some assistance. It is supplied with a short power lead, but you will need to purchase a suitable RCA cable for the video.


  • Image sensor:- PC7070
  • Video system:- PAL or NTSC - see information tab for which type.
  • Effective pixels:- PAL 580 x 510 NTSC 510 x 492 (H x V)
  • Horizontal resolution: 420 TVL
  • Min illumination: 0.01 Lux (0 LUX with IR on)
  • Electronic shutter:- 1/50 - 1/10000
  • Video output:- 1.0V +/- 0.5Vp-p 75 Ohms
  • Viewing angle: 120 degrees (unless specified in information tab)
  • Consumption:- 100 mA +/- 10%
  • Waterproof rating IP68
  • Stainless steel bracket
  • Supplied with RCA connectors (we have 4 pin by special order)
