CCD number plate frame reversing camera

CCD number plate frame reversing camera
 CCD number plate frame reversing cameraCCD number plate frame reversing camera
Our Price:  £96.00(Inc. 20% VAT)(£80.00 Exc. VAT)

Model:  CAM104CCD
Bar Code:  5060342250803
Vehicle:  Car, van
Voltage:  12 volt
Connector type:  4 pin aviation
TVL:  600 TVL
Special features:  4 IR LEDs for night vision
Type of sensor:  CCD
Sensor manufacturer:  Sharp
Sensor size:  1/3" sensor
Camera angle:  150 degrees

Weight:  600g



No stock, delayed despatch

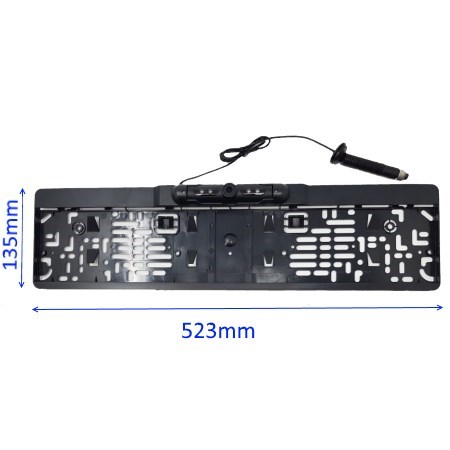

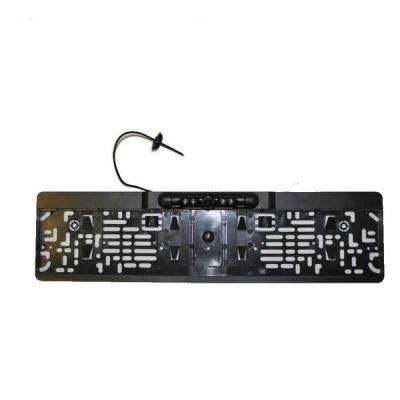

This number plate frame reversing camera uses a 1/3" Sharp 600 TVL CCD sensor and has 4 powerful infra red LEDs for night vision. The angle of the camera can be adjusted to get the best picture for your vehicle. It uses an aspheric lens to reduce the "fish eye" effect you get with wide angled lenses. It uses the same camera body as our CAM103 so the pictures we have it in use for that camera will apply to this one. It uses 4 pin  connectors for the lead to the monitor. We can also supply an adaptor cable (CAB002) if you need to convert it to the yellow phono style connector.

  • Image sensor:- Sharp 1/3" CCD
  • TV system :- PAL
  • Effective pixels :- 976 (H) x 582 (V)
  • Resolution :- 600 TVL
  • Minimum illumination :- 0 LUX (infrared LEDs on)
  • Video output :- 1.9Vp-p, 75 Ohms
  • Gamma consumpton:- 0.45
  • AGC:- On
  • Signal to noise ratio :- better than 48 dB
  • Electronic shutter :- 1/50 - 10000 auto
  • Baclight compensation :- Auto
  • Power supply :- 12V
  • Lens angle :- 150 degrees
  • Operating temperature ;_ -30 degrees C to 70 degrees C
  • Connector :- 4 pin aviation
