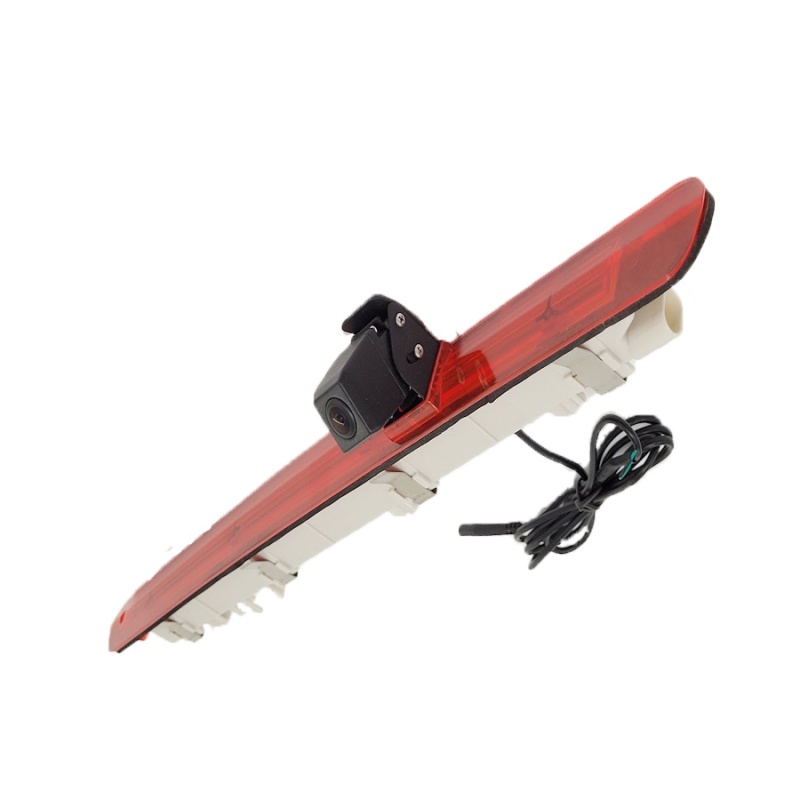

Brake light reversing camera for New Mercerdes Vito

This reversing camera is for the Mercedes Vito from 2016. It replaces the existing brake light and means no holes need to be drilled to fit a reversing camera. It uses the latest 700 TVL CMOS sensor, giving a colour high resolution image during the day. At night it gives a useable image with the assistance of street lighting and the vehicle lights. It can be supplied eith with a 4 pin aviation connector or the RCA connectors. For a small additional cost you can add an extension cable.

Specification of camera

• Sensor:                         1/3 PC4089 CMOS
• TV lines:                       700 TVL
• TV System:                  NTSC/PAL see listings for detail
• Lens:                            1.9mm
• Min Illumination:      0.1 Lux
• Viewing angle:           150 degrees
• Camera lens adjustable: Depends on model - see listing.
• Power voltage:          12V
• Current consumption: 120 mA
• Operation Temp:        -20 to +70 degrees C
• Connector:                  4 pin aviation
• Certification:              FCC, CE, E Mark, RoHS
• Effective Pixels:          728 (H) x 488 (V)
• Waterproof:                IP68
