Mini CCD bullet reversing camera

Mini CCD bullet reversing camera
  Zoom
 Mini CCD bullet reversing cameraMini CCD bullet reversing camera
Our Price:  £60.00(Inc. 20% VAT)(£50.00 Exc. VAT)
+
Video format:

Model:  CAM086PAL
Bar Code:  5060342250759
Vehicle:  Car, van
Voltage:  12 volt
Connector type:  RCA (phono)
TVL:  600 TVL
Type of sensor:  CCD
Sensor manufacturer:  Sony
Sensor size:  1/3" sensor
Camera angle:  150 degrees


This small CCD parking sensor comes in PAL or NTSC format. It uses a 1/4" Sony sCCD sensor which gives good colour reproduction during the day. At night there will be some night vision in areas with good street lighting. It is roughly the size of a parking sensor.

Please note our NTSC version uses the Sharp 1/4" CCD sensor at the moment and has 120 degree field of view.

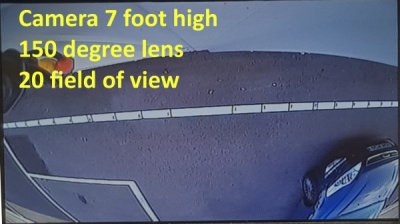

The one photograph shows the field of view obtained by this camera. At a typical mounting height it will cover the full width and more of the vehicle. We find manufacturers quoted camera angles are always inaccurate which is why we show the camera in a real situation.

  • Image sensor:- 1/3" 600 TVL Sony CCD
  • Video system: PAL (Unless stated as NTSC in information tab)
  • Effective pixels:-  PAL 752 x 582  NTSC 768 x 494 (H x V)
  • Horizontal resolution: 600 TVL
  • Signal to noise ratio:- >48dB
  • Electronic shutter: 1/50 - 1/10000 secs
  • Video output:- 1.0V+/-0.5vp-p 75 Ohms
  • Viewing angle:- 120 degrees (unless stated differently in information tab)
  • Working voltage:- DC9V - 12V +/- 0.5V
  • Consumption:- 80 mA+/- 10%
  • Waterproof rating:- IP68
