Clip on mirror rear view monitor and 2 CCD reversing cameras
Clip on mirror rear view monitor and 2 CCD reversing cameras
Clip on mirror rear view monitor and 2 CCD reversing cameras

Clip on mirror rear view monitor and 2 CCD reversing cameras

£247.00
(Inc. 20% VAT)
(£205.83 Exc. VAT)
+
Weight
2.10 kg
Introduction to product

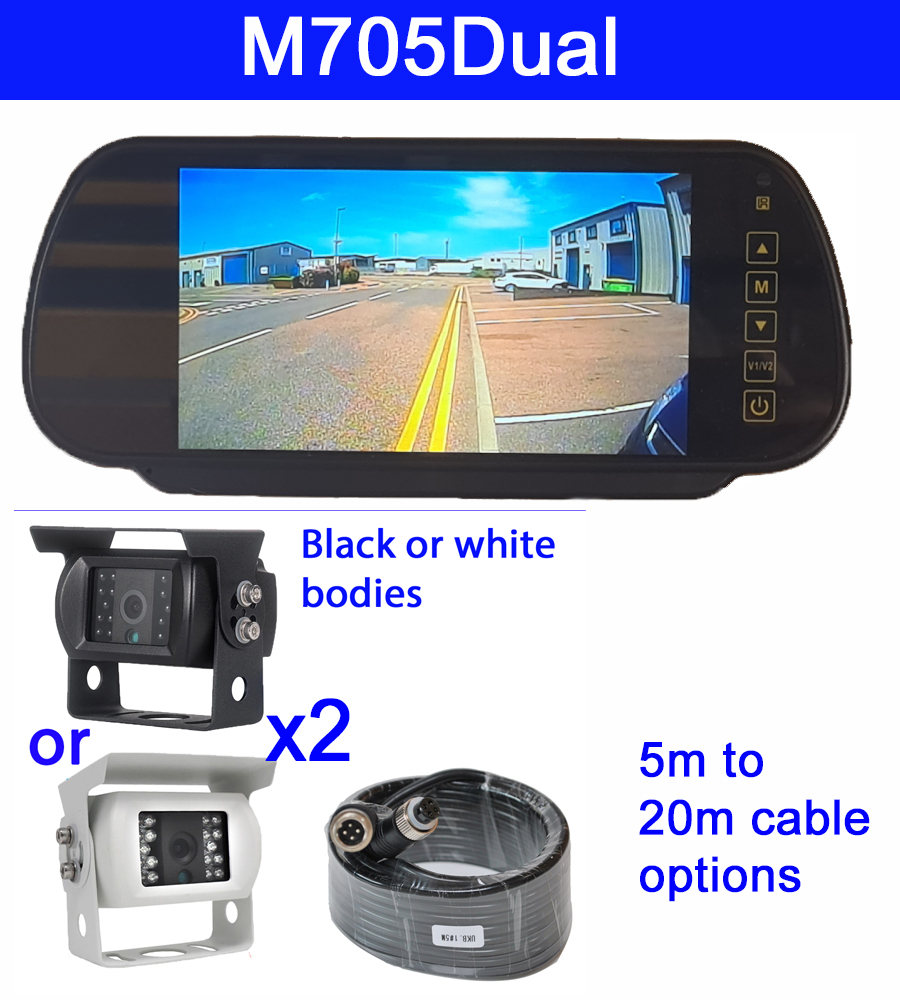

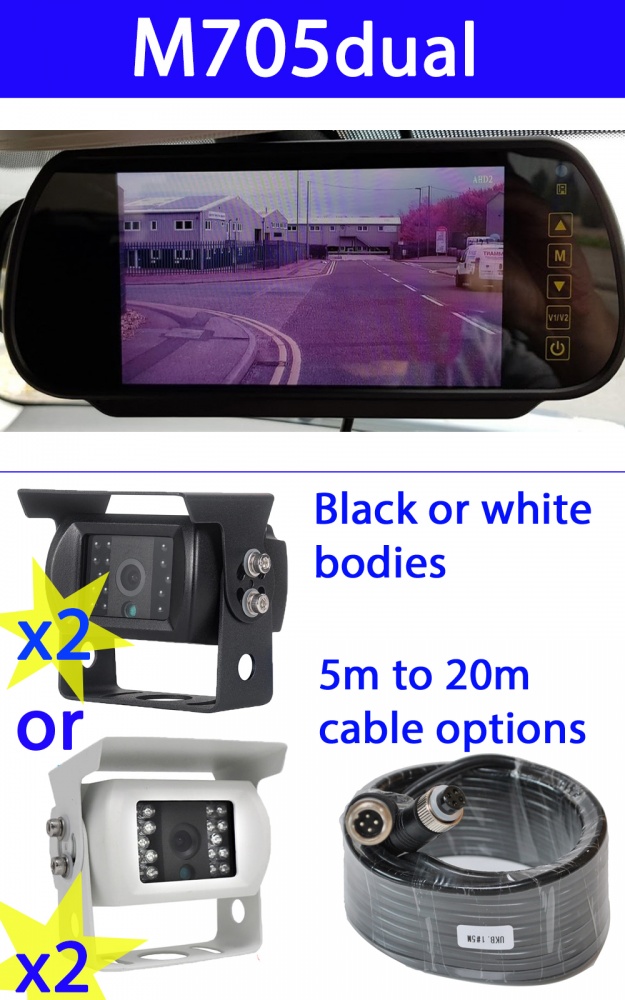

This series of systems matches two of our standard CCD reversing cameras with our 7 inch high resolution clip on mirror rear view monitor. It is a heavy duty system ideal for all vehicles and is designed for constant use. The high resolution screen gives a crisp clear image and our CCD reversing cameras produce good day and night images. It is a very simple system to wire in as it consists of just the cameras, a locking extension cable and the monitor. All the locking connectors are waterproof for increased reliability. The 2 camera systems are popular for use in horseboxes and on farm machinery. We are able to swap one of the cameras for a narrow angled version if required.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°  (Unless stated otherwise in information tab)
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M705Bdual
Bar Code
5060342252944
Vehicle
Car, van
Voltage
12/24 volt
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
Type of sensor
CCD
