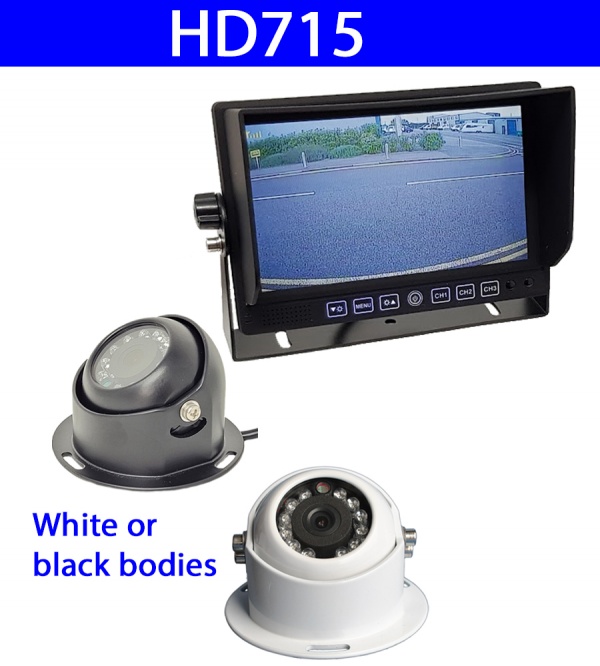

7 inch stand on dash monitor and CCD dome reversing camera
7 inch stand on dash monitor and CCD dome reversing camera
7 inch stand on dash monitor and CCD dome reversing camera
7 inch stand on dash monitor and CCD dome reversing camera

7 inch stand on dash monitor and CCD dome reversing camera

£192.00
(Inc. 20% VAT)
(£160.00 Exc. VAT)
+
Weight
2.10 kg
Introduction to product

The CCD dome reversing camera used in this system is popular as the case of the camera covers the cable entry point. The MON705 colour rear view monitor gives a high resolution image with 800 x 480 pixels. It will auto dim at night to reduce glare and has 3 AV channels for extra cameras. The monitor powers the camera so it can be turned on as required or used as a continuous rear view. It can also be connected to the reversing light so it comes on automatically when reverse is selected.

Specification of monitor
  • Resolution : 800 x R.G.B x 480
  • Aspect Ratio : 16:9 image
  • 3 way video input , 2 way audio input, with AV-IN
  • Power Supply : DC 9V-32V
  • System : PAL / NTSC Auto-Switching
  • OSD Menu , Remote Control
  • Built-in loudspeaker
  • Varying languages display
  • With stand & U shape bracket
  • Light sensor automatic adjustment
  • Size of main body 180mm (W) x 121mm (H) x 23mm (deep)
  • Digital colour panel with long life LED backlight
Specification of Camera
  • Horizontal resolution:- 420 TVL
  • Sensor type:- 1/3" Colour Sharp CCD
  • Effective pixels:- 500 (H) x 582 (V)
  • Waterproof:- IP68
  • Shockproof:- 10G
  • Power supply:- DC 12V
  • Weight:- approximately 300g
  • Viewing angle:- 120 degrees (diagonal measurement)
  • Usuable illumination:- 0 Lux with built in LEDs (if fitted - see desciption)



Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

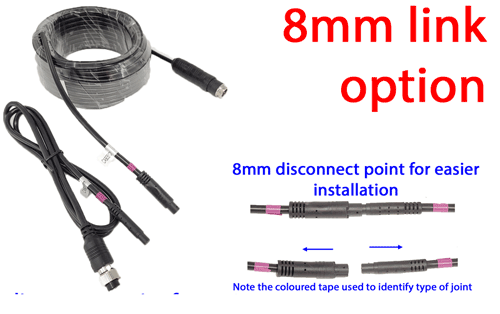

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

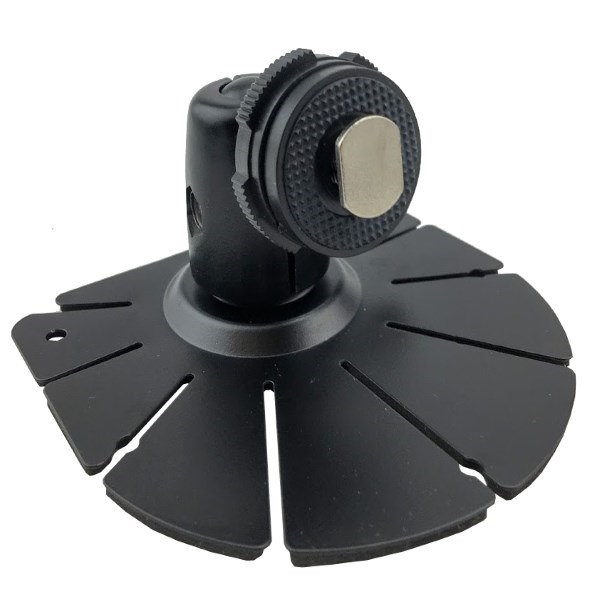

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
HD715B
Bar Code
5060342252616
Vehicle
Motorhome
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
Special features
Auto dims at night
