7 inch mirror monitor monitor and Mercedes Sprinter brake light camera
7 inch mirror monitor monitor and Mercedes Sprinter brake light camera
7 inch mirror monitor monitor and Mercedes Sprinter brake light camera

7 inch mirror monitor monitor and Mercedes Sprinter brake light camera

£188.00
(Inc. 20% VAT)
(£156.67 Exc. VAT)
In stock
+
Weight
2.10 kg
Introduction to product

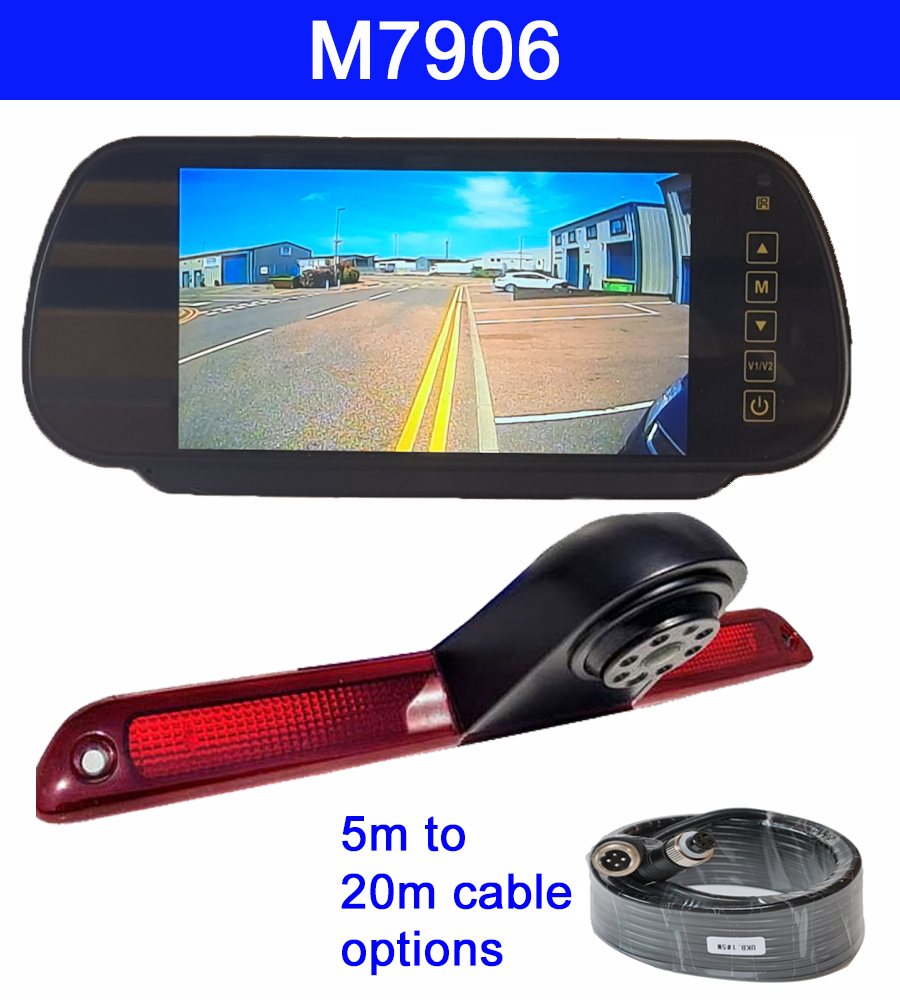

This is our top of the range system for a Mercedees Sprinter or VW Crafter van. It matches our 7" high resolution mirror monitor monitor with a reversing camera that replaces the high level brake light. This camera uses a 700 TVL CMOS sensor with a low current drain to prevent overheating that can affect CCD cameras in enclosures. They are well matched to give a high quality image both day and night. If you wish to purchase one of these systems with a metal bracket for the monitor to go onto the mounting plate on the windscreen then please email a photograph of your mounting plate. Although a small amount more expensive it does make a much neater solution than the clip over version of the monitor.

The camera connects to the monitor using locking 4 pin connectors for reliability. There is a two year guarantee on this system.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of Camera

Specification of camera

  • Sensor:                         1/3 PC4089 CMOS
  • TV lines:                       700 TVL
  • TV System:                  NTSC/PAL see listings for detail
  • Lens:                            1.9mm
  • Min Illumination:      0 Lux (LED ON)
  • IR LEDs:                       8 pcs
  • Night vision distance: 30 feet
  • Viewing angle:           150 degrees
  • Camera lens adjustable: 20 degrees (up and down)
  • Power voltage:          12V
  • Current consumption: 150 mA
  • Operation Temp:        -20 to +70 degrees C
  • Connector:                  4 pin aviation
  • Certification:              FCC, CE, E Mark, RoHS
  • Effective Pixels:          976 (H) x 592 (V)
Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M7906
Bar Code
5060342253279
Vehicle
Van
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
700 TVL
Type of sensor
Hi-Res CMOS
Sensor size
1/3" sensor
Camera angle
150 degrees
Compatible with
Mercedes Sprinter 2007 - to date
and
VW Crafter 2006 to 2017
