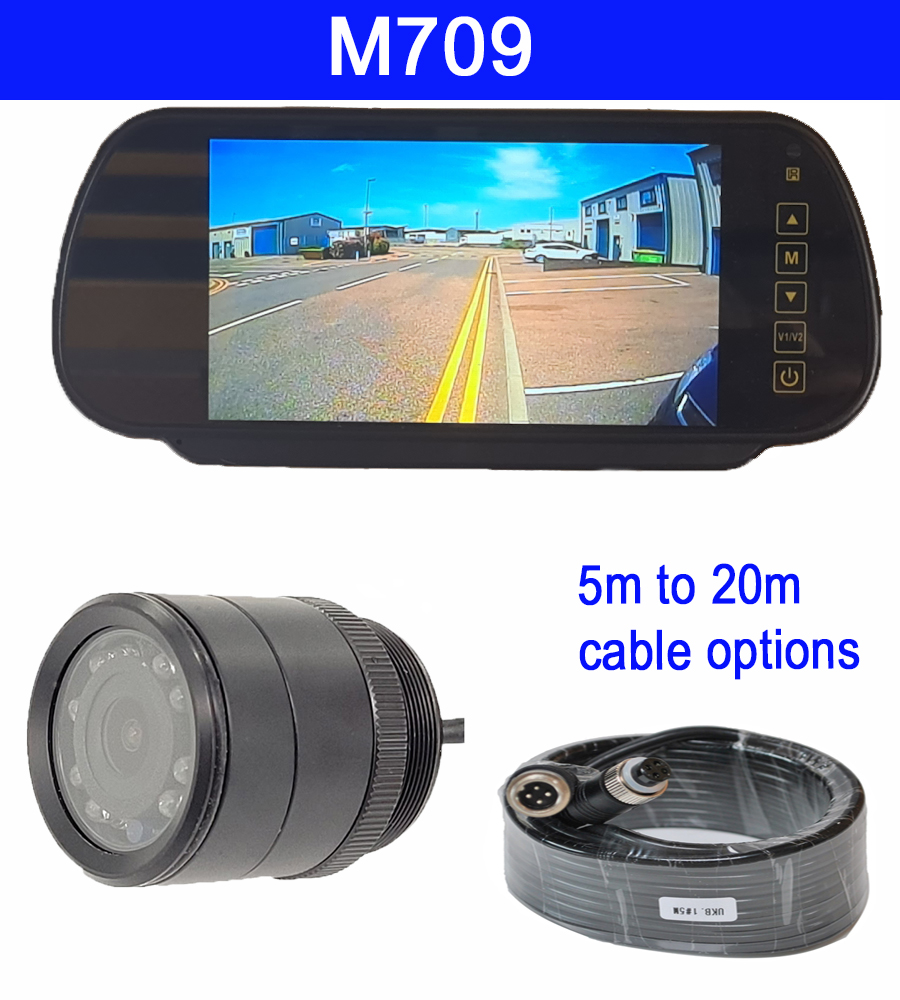

7 inch mirror monitor monitor and CCD bullet reversing camera
7 inch mirror monitor monitor and CCD bullet reversing camera
7 inch mirror monitor monitor and CCD bullet reversing camera

7 inch mirror monitor monitor and CCD bullet reversing camera

£184.00
(Inc. 20% VAT)
(£153.33 Exc. VAT)
In stock
+
Weight
2 kg
Introduction to product

The bullet reversing camera is a useful camera for mounting the skirt of motorhomes and bumpers of cars and vans. We have matched this reversing camera with our 7 inch colour TFT rear view monitor. This gives a high resolution of 800 x 480 pixels. It can be used in 12 or 24v vehicles automatically adjusting to the power supplied. The monitor powers the camera so it can be turned on when needed via the on/off button or linked to the reversing light to come on automatically. Although the camera is waterproof, we recommend the plastic moulding along the cable is kept internally. This houses the power regulator and can occasionally fail due to water ingress. We also recommend that it is tilted down to reduce the amount of sky in the image. If there is a lot of sky the auoto balance tends to darken the lower half of the image.

Specification of monitor
  • 7 "TFT LCD colour LCD
  • Display ratio: 16:9 / 4:3 image flip function
  • Resolution: 800 × (RGB) × 480
  • Two Video AV input - 4 pin connectors,
  • Full function remote control operation, touch button operation
  • Input Voltage: DC 12/24V automatic selection
  • Power:9W
  • Brightness: 300cd/m2
  • Contrast: 500:1
  • Colour: black
  • Long life LED backlight
  • 3m power loom - longer so you can easily reach the dash in a van
  • Video format: CVBS
  • Viewing angle: U/D 70/70 R/L 50/70
  • Adjustable grid lines which can be calibrated
Specification of camera
  • Image sensor:- 1/3" 600 TVL Sony CCD
  • Video system: PAL (Unless stated as NTSC in information tab)
  • Effective pixels:-  PAL 752 x 582  NTSC 768 x 494 (H x V)
  • Horizontal resolution: 600 TVL
  • Signal to noise ratio:- >48dB
  • Electronic shutter: 1/50 - 1/10000 secs
  • Video output:- 1.0V+/-0.5vp-p 75 Ohms
  • Viewing angle:- 120 degrees (unless stated differently in information tab)
  • Working voltage:- DC9V - 12V +/- 0.5V
  • Consumption:- 80 mA+/- 10%
  • Waterproof rating:- IP68



Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
M709
Bar Code
5060342253620
Vehicle
Car, van
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
Connector type
4 pin aviation
TVL
600 TVL
Type of sensor
CCD
Sensor size
1/3" sensor
Camera angle
120 degrees
