7 inch colour dash monitor and CCD reversing camera
7 inch colour dash monitor and CCD reversing camera

7 inch colour dash monitor and CCD reversing camera

£199.00
(Inc. 20% VAT)
(£165.83 Exc. VAT)
In stock
+
Weight
2 kg
Introduction to product

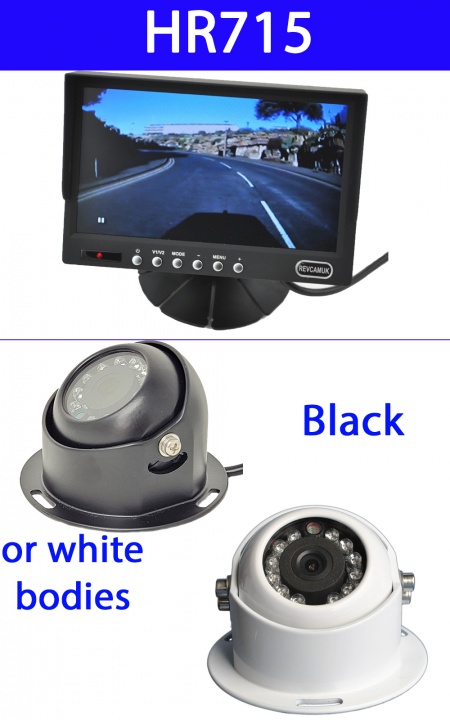

This combines our top CCD reversing camera with the MON509D. The camera has a stainless steel bracket and corrosion resistant finish. It gives a good image night or day. The monitor can be wired in to come on automatically when reverse is selected. It can also be manually turned on which allows the system to be used as an always on rear view.

Specification of monitor
  •    Screen size:7 inch (diagonal length)
  •    Brand new LCD panel, high resolution
  •    [16 : 9 ] wide screen display
  •    2 video inputs
  •    PAL & NTSC auto-switching
  •    Resolution:800 x R.G.B x 480 dots
  •    Power supply: DC 12 V/24V auto switching
  •    Remote control, OSD menu;
  •    4 PIN connectors
  •    View angle range:(left/right) 65º (top) 40º (down) 15º

Supplied with quick release style bracket and 8mm disconnect point for easy removal of monitor.

Specification of camera
  • Image sensor:- Sharp 1/3" CCD
  • TV system :- PAL
  • Effective pixels :- 976 (H) x 582 (V)
  • Resolution :- 600 TVL
  • Minimum illumination :- 0 LUX (infrared LEDs on)
  • Video output :- 1.9Vp-p, 75 Ohms
  • Gamma consumpton:- 0.45
  • AGC:- On
  • Signal to noise ratio :- better than 48 dB
  • Electronic shutter :- 1/50 - 10000 auto
  • Baclight compensation :- Auto
  • Power supply :- 12V
  • Lens angle :- 120 degrees
  • Operating temperature ;_ -30 degrees C to 70 degrees C



Explanation of our options

On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.

5m 7.5m 10m 12.5m 15m 20m

These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.

10M 8mm link, 12.5M 8mm link, 15M 8mm link

These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.

8mm link for reversing camera extension cable

Bailey adaptor

We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.

Waeco cable adaptor

Stand style bracket

Stand style bracket

This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.

Easy wire fuse tap a.k.a "piggyback fuse holders"

These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring.  We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.

Fuse tap



Model
HR7890
Bar Code
5060342257529
Vehicle
HGV, Farm Machinery
Voltage
12/24 volt
Screen size
7" diagonal
Screen resolution
800 x 480 pixels
TVL
600 TVL
Special features
Optional grid lines
Type of sensor
CCD
Sensor manufacturer
Sharp
Camera angle
120 degrees
